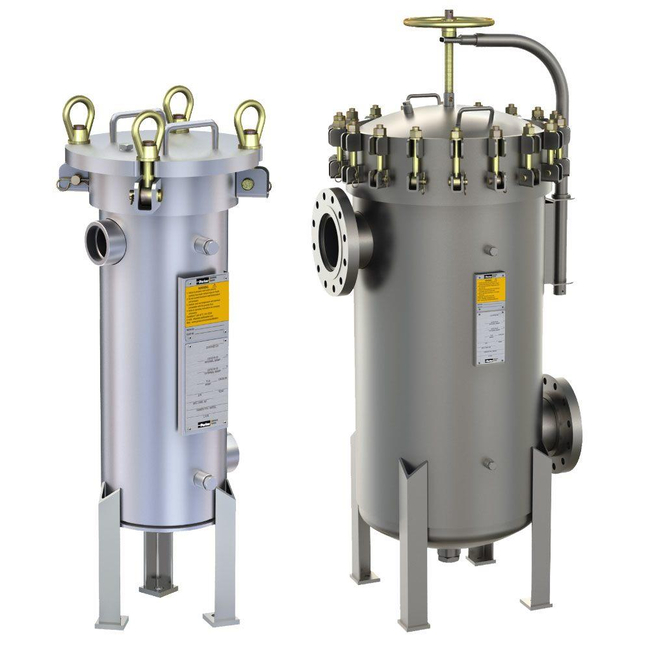

Fulflo SB BAG Filter Vessels | Carbon Steel, 304 & 316 Stainless Steel ASME Code Design for Process Liquid Filtration
Brand: Parker HannifinConstructed to handle flow rates of up to 1120 gpm (4240 lpm), the Fulflo® SB series of bag and strainer filter vessels provides excellent filtration in a wide range of industrial and chemical liquid applications.
All details of design, materials, construction, and workmanship of the SB filter vessel series conform to ASME code, and are available in non-code design and construction.
Features- Accepts “C” style flex band bags for optimized independent seal
- Built in accordance with ASME (U or UM stamp) Boiler and Pressure vessel code
- Maximum design pressure is 150psi (10.3bar) or 300psi (20.7bar)
- Available in carbon steel, 304 stainless steel, or 316 stainless steel
- Single O-ring seal closure design assures quick, positive cover seal
- Swing bolts with hex nuts, for fast easy opening and closing of cover
- Buna-N standard O-ring with Viton® elastomer, and fluoropolymer elastomer O-rings also available
- Positive bag media seal prior to sealing housing
Specifications
Brand
Filter Construction
- Bag Filter Vessel
Flow Rate
- 80 gpm, 160 gpm, 240 gpm, 480 gpm, 320 gpm, 640 gpm, 800 gpm, 960 gpm, 1120 gpm, 1440 gpm
Function
- Clarification
Industry Standards
- ASME Sec. VIII, Div. 1, U Stamp
Markets
- Industrial / Inks, Paints & Coatings / Food & Beverage
Maximum Operating Pressure (psi)
- 150 psi (10.3 bar), 300 psi (20.7 bar)
Maximum Operating Temperature (°F)
- 500°, 300°, 400° F
Seal Material
- Buna-N (250° F Max.)
- Potable Water Filtration
- Process Water Filtration
- Coating Filtration
- Lubricant Filtration
- Coolant Filtration
- Cutting Oil Filtration
- Solvent Filtration
