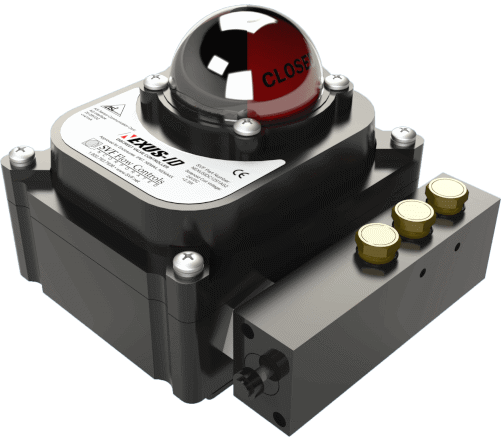

NEXUS-LPX™ ATEX Discrete Valve Controller

Brand: SVF Flow Controls, LLC
Add Product to My Catalog

Nexus LPX is a discrete valve controller providing an optimized solution for on/off valve control and position sensing in hazardous area locations for the process industries.

It is Equipped with a low watt miniature pilot valve and position switches or sensor.

The Nexus LPS helps plants, platforms and pipelines improve productivity and increase safety in the harshest environments and toughest applications.
Features
  • Integrated Solution (switches, sensors, pilot and spool valve in a single platform)
  • Approved for Enclosure: DNV 09 ATEX 53807X, NEMA 7
  • Area Classification: Ex II 2G Ex d IIB T6, IP66, Class 1, Zone 1(Division 1), Groups A-D
  • Suitable for use on rotary applications for double acting or spring return actuators
  • NAMUR and ISO 5211 adjustable mounting bracket
  • 5/2 Aluminum spool valve, anodized and polyester coated
  • 1 x ¾” NPT conduit entry
  • Single pilot actuated, with manual operator (Cv=1.4)

View_Details

Specifications

Brand

Enclosure

  • DNV 09 ATEX 53807X, NEMA 7

Temperature Rating

  • -4° F ~ +185° F (-20° C ~ +85° C)

Working Medium

  • Filtered and Dried Air

Working Pressure

  • 40 psi ~ 120 psi (2.8 bar ~ 8 bar)

Materials of Construction

  • Die Cast Aluminum
  • Stainless Steel
  • Polycarbonate
  • ABS
  • Buna ”N”
  • Copper Alloy
  • Carbon Steel

Documentation

Data Sheets

Brochures

Manuals
