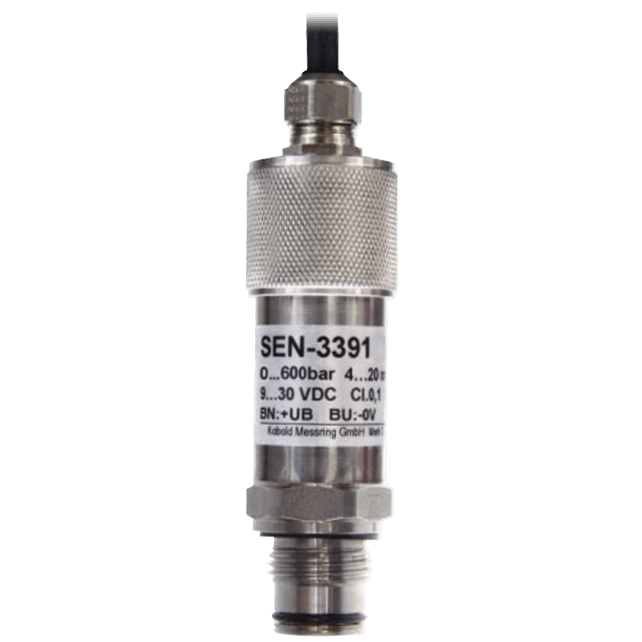

SEN-3391 Pressure Transducer
Brand: KOBOLD Instruments, IncThe Heavy Duty Industrial pressure transducers are leaders among pressure transducers. The flush type diaphragm allows the use with aggressive, viscous or crystallizing process fluids.
This type of sealing permits cleaning of the process connections without residues. With an accuracy of 0.1% (0.05% optional) use in testing and calibration is given.
By a programmatic compensation temperature of 10° to 60° C the temperature-induced error is practically zero. As measuring element, a thin-film pressure sensor is used. Case and wetted parts are stainless steel.
Therefore the are extremely resistant against aggressive media and fulfill the most demanding requirements.
Case and wetted parts are stainless steel. Therefore they are extremely resistant against aggressive process fluids. The sensor in unaffected by shock or vibration.
Optional software is available to adjust zero and span in difficult applications like measurement of the hydrostatic column.
Specifications
Brand
Accuracy
- 0.05 % of Full Scale at 20° C (68° F) - Optional
- 0.1 % of Full Scale in Range 10° to 60° C (50° to 140° F)
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
Applications
- Hydraulic Applications
- Plant Construction
- Pneumatics
- Process Engineering
- R & D & Laboratory
- Testing & Calibration
BSP Connection
- G 1/2" Male
Compensated Temperature
- -20° to 80° C (-4° to 176° F)
Electrical Connectors
- Cable Outlet 5 ft (1.5 m)
- Connector DIN EN 175301-803 Form A (DIN 43650 A)
- M12 x 1
Element
- Thin Film - Sensor Element
Enclosure / Body Material
- Stainless Steel
Environmental Protection
- IP65
- IP67
Frequency
- 0.33 to 1 kHz
Load Resistance
- > 10 kΩ for 0-10 V
- > 5 kΩ for 0-5 V
O-Ring Material
- NBR
Output
- 0-10 Vdc
- 0-20 mA, 3-Wire
- 0-5 Vdc
- 4-20 mA, 2-Wire, 3-Wire
Power Requirement
- 14-30 Vdc for Output 0-10 V - Auxiliary Power
- 9-30 Vdc - Auxiliary Power
Pressure Range
- bar: 0 to 600
- kPa: 0 to 60,000
- psi: 0 to 8,700
Pressure Type
- Gauge Pressure
Process Temperature
- -20° to 105° C (-4° to 221° F) - Medium Temperature
Repeatability
- ≤ ± 0.03 % of Full Scale
Response Time
- 1 ms - 3-wire (1 kHz)
- 3 ms - 2-wire (0.33 kHz)
Stability
- ≤ ± 0.2 % of Full Scale Per Year
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Temperature Effect
- ± 0.1 %/10 K - Temperature Influence on Zero Point & Span
Temperature Range
- Maximum
Version / Leadwires
- 2-Wire - Output
- 3-Wire - Output
Wetted Materials
- EPDM - Option
- FKM - Option
- FPM - Option
- Stainless Steel
