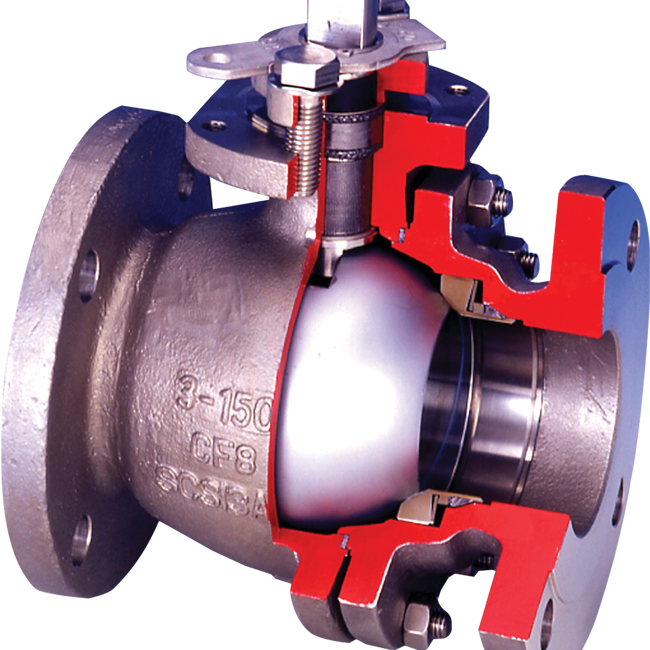

Emerson KTM Metal Seated Ball Valve, Metaltite

Model Metaltite Metal-Seated

Brand: KTM
Add Product to My Catalog

Metaltite® metal seated ball valves have excellent sealing characteristics suitable for various fluids services with a wide range of operating temperatures.
Features
  • High precision machining results in superior ball and seat interfacing for tight shutoff conforming to ANSI / FCI 70-2 Class V (Class VI as option).
  • Spring loaded seat maintains close contact with the ball assuring tight sealing even at low pressures. This results in stable opening and closing torques at high differential pressures over a wide range of temperatures.
  • The combination of metal seats and graphite seals ensure fire-safe capabilities.
  • Various material components are available for a variety of service application up to 500ºC.
  • Uniquely designed trunnion mounted valves are also available for powder service.
  • KTM can provide a complete valve and actuator as ‘package’ for special applications including powder and super speed applications.
  • Surface-hardened ball and seats allow use in more severe applications such as slurries, pulp stock and other abrasive media in long life.
  • Ball surface hardening process can be chosen. (For details, please refer to page 2) Hard chrome plating Nickel alloy overlay Tungsten Carbide Chrome Carbide.

Specifications

Brand

Approvals & Certifications

  • CE, CRN, Fire Safe, Fugitive Emission, NACE, PED, SIL Capable

Body Design

  • Side Entry, Long Pattern

End Connection

  • Flanged

Material

  • 304 Stainless Steel, 316 Stainless Steel, Carbon Steel, Hastelloy, Inconel, Stainless Steel

Media

  • Aggressive Liquids & Gases, Air, Inert Gas, Fuel Oil, Liquids, Steam

Operating Temperature

  • High Temperature

Pressure Class

  • ASME

Process Connection Type

  • CL300 RF, Class 600 RF, Flanged, Class 150 RF, 300 RF, 150 RF

Seat / Seal Type

  • Ball, Metal-to-Metal

Shutoff Class

  • Class VI (FCI 70-2), Class V (FCI 70-2)

Standards

  • ASME B16.34, API 608

Valve Size

  • NPS 3 / DN 80, NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 1/2 / DN 15, NPS 4 / DN 100, NPS 6 / DN 150, NPS 3/4 / DN 20, NPS 1 / DN 25, NPS 8 / DN 200

Valve Size Standard

  • DN, NPS

Valve Type

  • Ball, Floating Ball Valve

  • Biomass Boiler & Power Boiler
  • Bioreactor
  • Blowers
  • Boiler
  • Cogeneration
  • Combustion
  • Delayed Coker
  • Dirty Service
  • Distillation & Fractionation
  • Dryers & Evaporators
  • Balance of Plant
  • Evaporators & Recovery Boiler
  • Evaporators & Dryer
