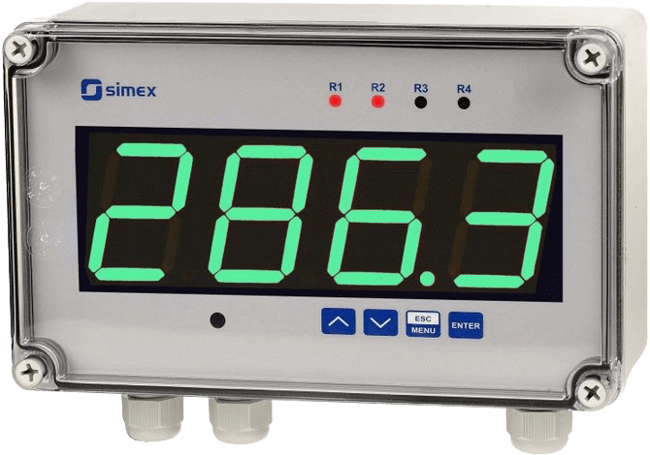

SWS-457 Indicator
Brand: SIMEX sp. z o.o.
The SWS-457 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user - in SLAVE mode only sent from the master device over the RS-485 serial interface link.
The displayed value may be collected from other device - in MASTER mode.
As a main advantage, this device is equipped with a large, 57 mm high display offering ultra bright red, green and blue as well as multicolour LED's.
User can change display colour in 9 steps range - through light green, yellow and through green and display brightness in 8 steps range.
Thanks to the tight housing with high: IP 67 protection degree, this device is particularly suitable for operations in harsh environments.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
The meter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.
Features- Indicator in Tight Wall-mounted Case IP 67
- Multicolour or Ultra Bright Red, Green and Blue, 57 mm LED Display
- Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- MASTER / SLAVE
- Adjustment of Colours and Brightness for the Display
- Password Protected
- Free Configuration Software S-Config
Specifications
Brand
Input Type
- No Input
Output Type
- No Output
Power Supply
- 16...35 Vac, 19...50 Vdc
- 85..260 Vac/dc
Display
- LED, 4 x 57 mm, Multicolour
- LED, 4 x 57 mm, Ultra Bright: Red, Green, Blue
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 67
Case Material
- ABS
- Polycarbonate
Mounting
- Wall
Case Dimensions
- 230 x 140 x 96.5 mm
