ATL-F

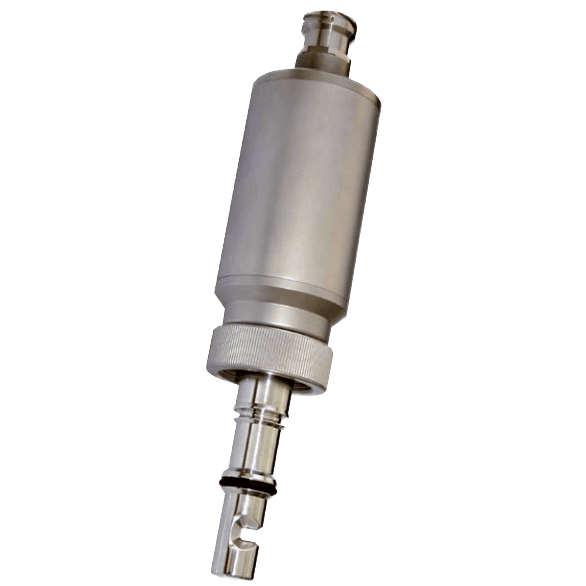

The Kobold Turbidity Probe ATL-F is a high-precision, single channel absorption probe. The probe uses the light in the visible (VIS) range at a selected wavelength of 430 nm. An optical filter on the lamp side adapts the wavelength for specific applications and allows colour measurements with great accuracy (e.g. phase separation beer/water) at 430 nm.

ATL-N
The Kobold Turbidity Probe ATL-N is a high-precision NIR single channel absorption probe. The ATL-N uses light in the Near Infrared (NIR) from 730 to 970 nm. The optical filter on the lamp side adapts the wavelength for specific applications and allows colour-insensitive concentration measurements in the near infrared range. The ATL-N probe comes with two different optical path lengths (OPL) for process versatility.

Specifications

Alarm

  • 2 Independent Adjustable SPDT Contacts

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Applications

  • Phase Separation

Approvals & Certifications

  • CE
  • ISO 9001: 2000
  • PED

BSP Connection

  • G 1-1/4”

Cable Length

  • 164 feet (50 metres)

Consumption

  • 30 VA

Display

  • 3-Digit LED Display

Electrical Connectors

  • Plug Connection

Enclosure Finish

  • Electro-Polishing Ra < 0.8 um (Standard)

Enclosure, Body Material

  • 316Ti Stainless Steel

Environmental Protection

  • IP20 - Rear
  • IP40 - Front
  • IP65

Gasket Material

  • Chemraz
  • EPDM
  • Kalrez 6375
  • Silicone

Length

  • 30 mm - Nominal
  • 60 mm - Nominal
  • Insertion Depth, Max.

Linearity

  • < ± 2 % of Respective Measuring Range

Load

  • 500 ohms, Max.

Materials of Construction

  • 316L Stainless Steel - Adapter

Metric Connection

  • M5 Female

Mounting

  • Rack-Mounted

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Output

  • 0/4-20 mA (Galvanically Isolated)

Power Requirement

  • 115 Vac
  • 230 Vac
  • 24 Vac
  • 24 Vdc

Pressure Rating

  • psi: 145 (kPa: 1,000, bar: 10)

Process Temperature

  • 0° to 100° C (32° to 212° F)

Resolution

  • < ± 0.5 % of Respective Measuring Range

Response Time

  • 1 second

Size

  • O-Ring Diameter: 18.64 x 3.53 mm (Port Gasket)

Wavelength

  • 430 to 970 Nm

Wetted Materials

  • 316L Stainless Steel

Window Material

  • Sapphire (without Gasket)
