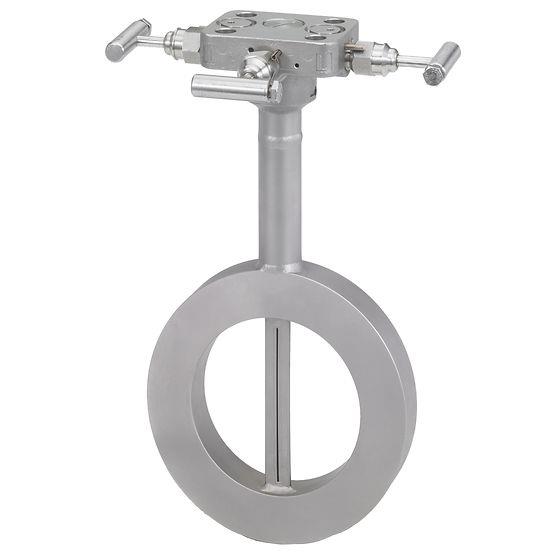

405A Compact Annubar Primary Element
Brand: RosemountThe Rosemount 405A Compact Annubar Primary Element is an averaging pitot tube that delivers reliable measurement accuracy. Engineered to install between raised-face flanges, this sensor eliminates the need for impulse piping and additional process penetrations for straightforward, cost-efficient installation.
The patented T-shaped design includes a flat upstream surface for high performance over a wide flow range and a stagnation zone for a reduction in noise and measurement inaccuracies.
Features- Compact pitot tube designed to fit and install between raised-face flanges for straightforward installation
- Eliminates the need for impulse piping and added pipe penetrations for a cost-effective solution
- T-shape sensor with flat upstream surface offers a fixed separation point for high performance over a wide flow range
- Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging
- Integral centering ring ensures proper alignment in the pipe for accuracy
- Integral thermowell adds process temperature measurement without additional pipe penetrations
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel
Media
- Fluids
- Gas
- Steam
NACE & NIST
- NACE MR-0175, ISO 15156
Size
- Line Size: 2" to 8"
Temperature Range
- -100° to 454° C (-148° to 850° F)
Wetted Materials
- 316 Stainless Steel
