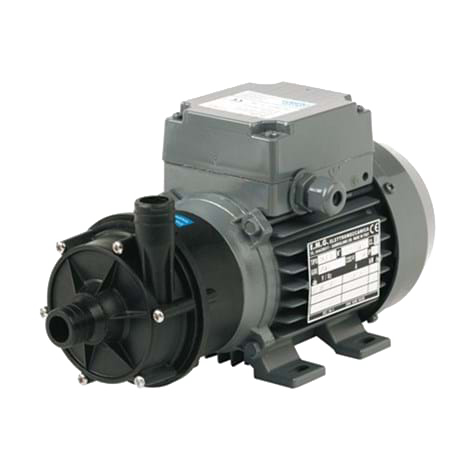

EMP60 6 Series Magnetic Drive Centrifugal Pump
Brand: Flojet
FeaturesManufactured in chemical resistant thermoplastics – entirely non-metallic.
Magnetic couplings provide energy efficient thermal shield, minimizing heat transfer to pumped fluid.
IP55 motor standard.
Specifications
Brand
Dimensions (H x W x D)
- 146 x 262 x 108 mm
- 5.7 x 10.3 x 4.3 (inches)
Frequency
- 50 Hz
Materials of Construction
- All PPS Version Available for High Temperature/Pressure Applications
- Alumina Ceramic Spindle
- PP Encapsulated Magnet, PVDF Optional
- PP Pump Housing, PPS & PVDF Optional
- PPS Spindle Housing, PVDF Optional
- Standard EPDM O-Ring, Optional Nitrile or Viton
Maximum Liquid Temperature
- -20° to 85° C
- -4° to 185° F
Maximum System Pressure
- 1.4 bar
- 20 psi
Motor Power
- 90 (W)
Voltage
- 400 Vac
Weight
- 4 kg
- 8.8 lbs
