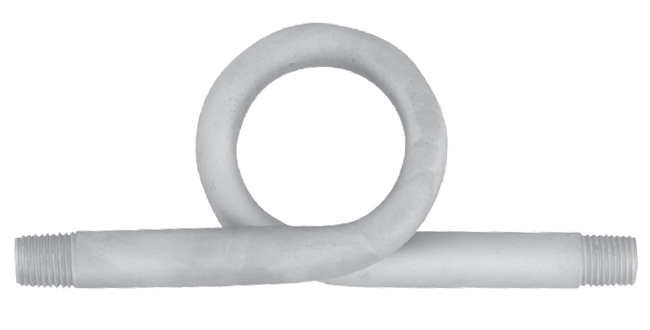

Model SI25/SI50 Pigtail Siphon
Brand: Pitanco PrecisionPigtail siphons are installed on steam line in order to protect the pressure gauge and related connections from the medium.
The curved part of the siphon generates a condensation formation that remains in the curved part of the siphon to protect the measuring instrument.
It is imperative to use a pigtail siphon on all devices when the temperature of the medium is 100˚C (212˚F) or more, it allows the hot medium to cool before entering the pressure instrument.
Specifications
Brand
Material
- Black Steel Schedule 40
- Black Steel Schedule 80
- Galvanised Steel Schedule 40
- Galvanised Steel Schedule 80
- Brass
- 304 Stainless Steel Schedule 40
- 304 Stainless Steel Schedule 80
- 316 Stainless Steel Schedule 40
Connection
- 1/4” NPTM x 1/4” NPTM
- 1/2” NPTM x 1/2” NPTM
Pressure Range
- 245 psi to 2,419 psi
