Pribusin Dual Isolated Output Terminal Signal Conditioner, ITC-XXX-XX-DC

ITC-XXX-XX-DC Dual Isolated Output Terminal Signal Conditioner

Brand: Pribusin, Inc
Add Product to My Catalog

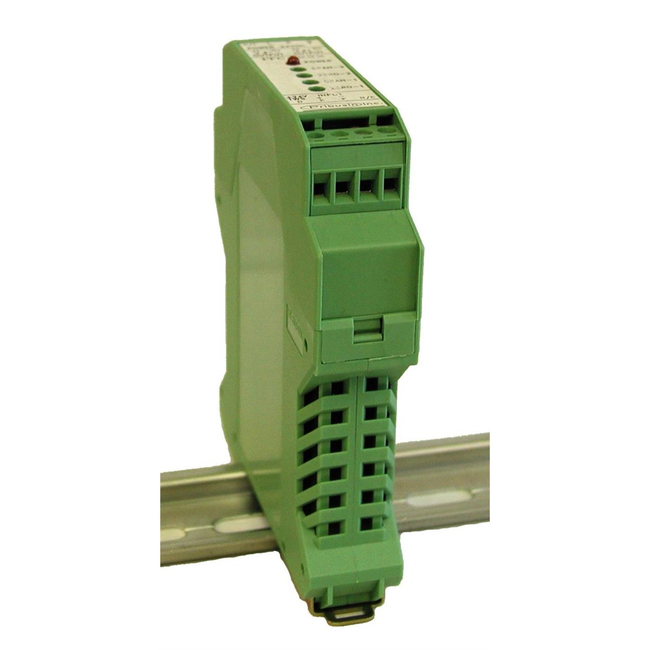

The ITC-XXX-XX-DC provides high isolation from Input to Output to Power in a small, easy to install package. The universal DIN rail mount often makes it possible to install the ITC-XXX-XX-DC right next to the instrument that is to be isolated. The many different input and output configurations allow it to be used is a great variety of applications ranging from PLC front end conditioning to adding an extra loop with lots of drive to an existing almost fully loaded, loop.

The high output drive (100 Ohms @ 4-20 mA) allows the ITC-XXX-XX-DC to drive several other instruments directly from its output. The standard two wire supply allows the ITC-XXX-XX-DC to be used with two wire field transmitters such as differential pressure transducers, temperature sensors, etc.
Features
  • High Input-Output-Power Isolation (1500Vac Test).
  • Small Size - Fits on Terminal Block Rail.
  • Industry Standard Inputs: 4-20 mA, 1-5 Vdc, and more.
  • Industry Standard Outputs: 4-20 mA, 1-5 Vdc, more.
  • High Output Drive on Current Outputs (1000 Ohms for 4-20mA output).
  • Power: 12, 24, 40 Vdc, 80 mA.
  • Two Wire Supply Output for Two Wire Transmitters.
  • High Noise Rejection.
  • CSA and NRTL Approved (LR 51078).

Specifications

Brand

Accuracy, Linearity

  • ± 0.1 % Max., ± 0.05 % Typical

Contact Rating

  • 10 A 1/8 hp at 125 Vac
  • 6 A 1/8 hp at 277 Vac

Operating Temperature

  • -40° to +50° C

Temperature Effects

  • ± 0.5 % Max., ± 0.2 % Typical for 40° C Change

Documentation

Data Sheets

Product Manuals
