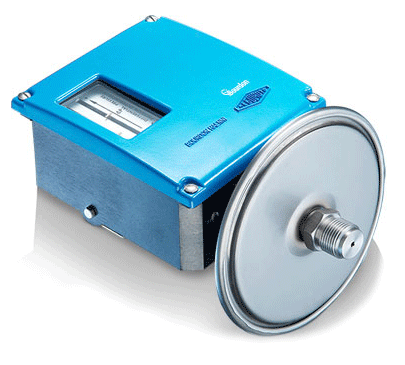

RDN6 Differential Pressure Switch
Brand: Bourdon
Features
- Excellent repeatability
- Dead band adjustment for regulation
- Fix dead band for control
- Static pressure max. 20 bar
- No influence of the static pressure on the setpoint
Specifications
Brand
Adjustment
- 2 External Adjustment Screws on Top of the Case for Set Point & Deadband
- Static Pressure Has Influence on the Set Point if Adjusted
Ambient Temperature Range
- -25° to +55° C
Approvals & Certifications
- Low Voltage Directive (LVD) 2014/35/UE
- Pressure Equipment Directive 97/23/CE
Case Material
- Black Painted, Zamak
Cover
- Blue Painted, Zamak
- Captive Stainless Steel Screws
Diaphragm
- FKM (Viton)
Electrical Connectors
- Via Internal Terminal Block with Plastic Cable Gland for Ø 7 to 10.5 mm
Flange
- Stainless Steel 1.4404, AISI 316L
Ground Connection
- Via Internal Terminal Block
IP Protection Rating
- IP66
Maximum Measuring Range
- 10 to 2000 Mbar
Media Temperature
- -15° to +150° C
Minimum Measuring Range
- 10 to 200 Mbar
Mounting
- Wall Mounting Bracket
Process Connection
- 1/2” NPT
- 1/4” NPT Female
- G1/2”
- G1/4” Female
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Repeatability
- ± 1 % of Full Scale
Scale
- Internal, Accuracy on Reading ± 5 % of Full Scale
Storage Temperature
- -40° to +70° C
