FM-3100 Series Mag Gauge
Brand: Tokyo Keiso Co, Ltd

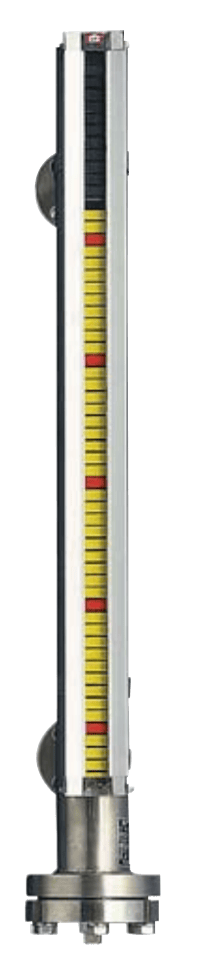

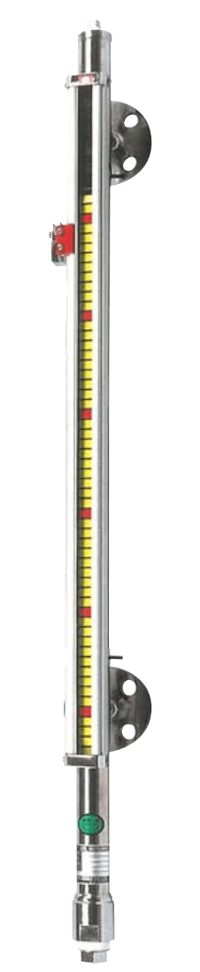

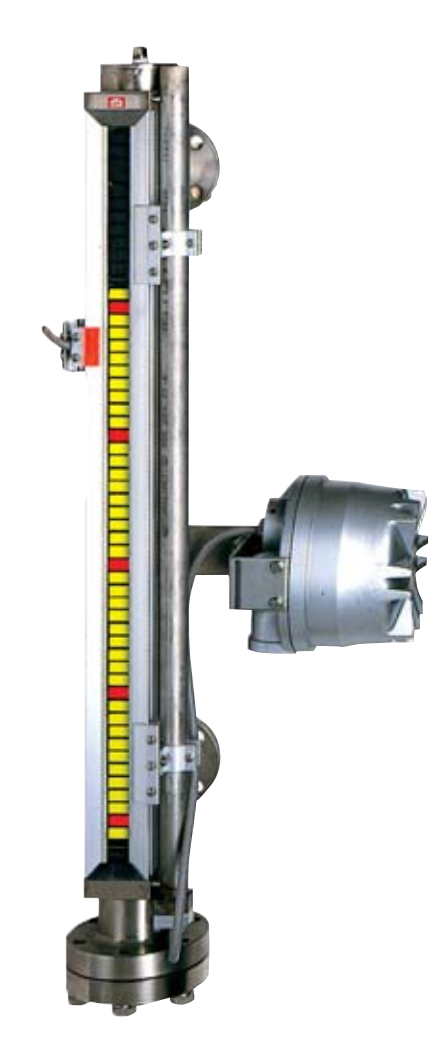

FM-3100 series is a small and lightweight Mag gauge with a chamber (ø34) made of SUS304, SUS316 or SUS316L stainless steel and SUS316L float.
Specifications
Brand
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150# ANSI
- 1" (DN 25) - JIS 10K
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150# ANSI
- 1/2" (DN 15) - JIS 10K
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - 150# ANSI
- 3/4" (DN 20) - JIS 10K
Flange Size - 3/8” (DN 10)
- 3/8" (DN 10) - JIS 10K
- 3/8" (DN 10) - JIS 5K
Materials of Construction
- Float: 316 Stainless Steel
Maximum System Pressure
- psi: 145 (kPa: 1,000, bar: 10)
Range
- 0 to 2,000 mm
Temperature Range
- -5° to 120° C (23° to 248° F)
