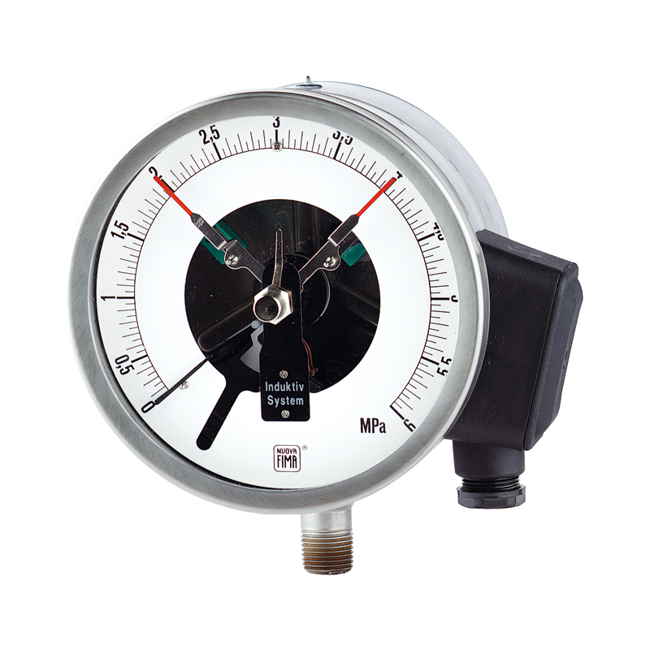

Nuova Fima Pressure Gauge with Electric Contact, MCE20 DN150

MCE20 DN150 Pressure Gauge with Electric Contact

Brand: Nuova Fima
Add Product to My Catalog

These instruments are manufactured in accordance with the safety norms prescribed by UNI 8541, DIN 16006 e ANSI B40.1.

They are used to control the electrical operation of compressors, pumps, presses, hydraulic and pneumatic equipment, chemical and petrochemical plant.

In the event of leakage or break of sensing element, the operator is protected by a solid baffle wall placed on the instrument front and by the rear blow out wall.

The contacts open or close the circuit depending on the position of the indicating pointer and they are adjustable over the whole range.

For application on severe working conditions, such as rapid and frequent pressure change, vibration and pulsation, they are manufactured with the case liquid filled.

The filling drastically reduce the effects of such factors as well as those caused by the corrosive atmosphere, making longer life and better performances of the pressure gauge and their electric contacts.

They are also available with inductive contacts intrinsically safe.

Specifications

Brand

Accuracy

  • ± 1,0 % as Per EN 837-1 - DIN 16085 (1)
  • Filled Model: ± 1,6 % as Per EN 837-1 - DIN 16085 (1)

Ambient Temperature Range

  • -13° to +149° F (-25° to +65° C)

Case

  • Stainless Steel

Dial

  • Aluminum, White with Black Markings

Elastic Element

  • AISI 316L Stainless Steel

Filling Liquids

  • Filled Model: Silicone Dielectric Oil

IP Protection Rating

  • Filled Model: IP65 as Per EN 60529 / IEC 529
  • IP55 as Per EN 60529 / IEC 529

Mechanical Contact

  • Filled Model: Magnetic Snap-Action
  • Sliding Contact, Magnetic Snap-Action, Electronic, Inductive

Movement

  • Stainless Steel

Over Pressure

  • Not Suitable

Pointer

  • Not Adjustable, Aluminum, Black

Process Fluid Temperature

  • Filled Model: Max.
  • Maximum

Ranges

  • From 0 to 15 to 0 to 20,000 psi (From 0 to 1 to 0 to 1600 bar or Equivalent Units)

Ring & Blow Out Disk

  • Stainless Steel

Socket Material

  • AISI 316L Stainless Steel

Window Material

  • Plastic

Working Pressure

  • Maximum
