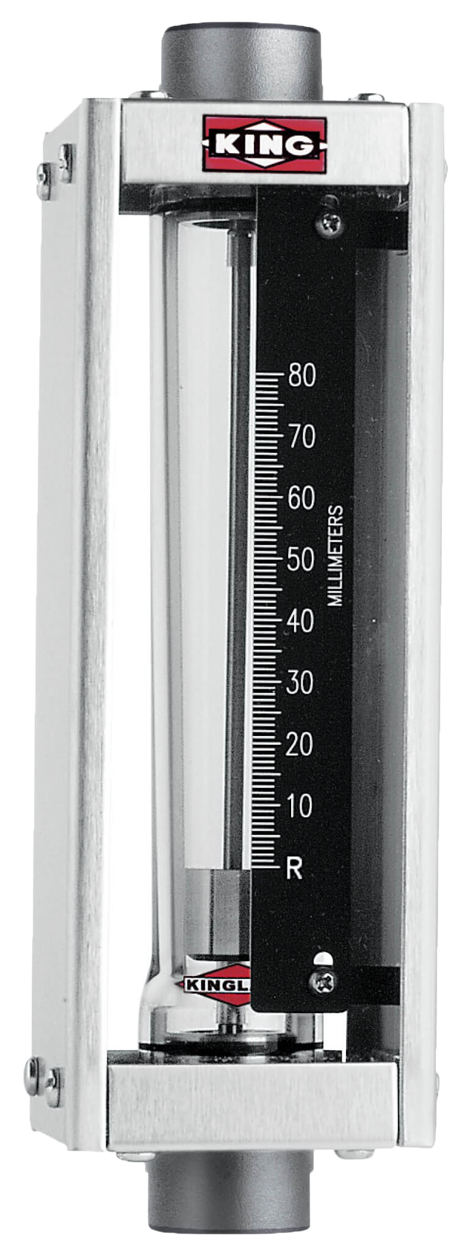

7460 Series Glass Tube Flowmeter
Brand: King Instrument CompanyThere is nothing else like it in the industry. This 75 mm scale glass tube meter offers economical 304 stainless steel case construction with vertical connections.
Features- Economical Borosilicate Kinglass Meter
- 316L SS Case and Internals
- In-Line FNPT Connections
- 75mm Detachable, Direct Reading Scales
- 0.5 – 25 GPM Water; 2 – 14 SCFM Air
1 - 12 of 208 Part Numbers
746-1-2-1-41A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 2 SCFM
746-1-2-1-41W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 0.5 GPM
746-1-2-1-42A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 4 SCFM
746-1-2-1-42W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 1 GPM
746-1-2-1-43A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 8.2 SCFM
746-1-2-1-43W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 2 GPM
746-1-2-1-44A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 14 SCFM
746-1-2-1-44W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 3.5 GPM
746-1-2-1-45A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 22 SCFM
746-1-2-1-45W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 5.6 GPM
746-1-2-1-46A
- Flow Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 29 SCFM
746-1-2-1-46W
- Flow Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 7.4 GPM
1 - 12 of 208 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L Stainless Steel
- Hastelloy® C-276
Fitting Material
- 316L Stainless Steel
- PVC
Inlet/Outlet Fittings
- FNPT Vertical
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez®
Case And Covers
- 304 Stainless Steel case
- Polycarbonate shield
Capacities
- Water: 0.5 to 25 GPM
- Air: 2 to 14 SCFM
Scale
- 80 mm (3") direct reading, detachable
Accuracy
- ± 5 % of full scale flow
Turndown
- 10:1
Repeatability
- 1%
Maximum Temperature
- 316L Stainless Steel fittings Gases: 250° F
- 316L Stainless Steel fittings Liquids: 200° F
- PVC fittings Liquids: 110° F
Maximum Pressure
- 316L Stainless Steel: 200 psig
- PVC fittings: 150 psig
Certified Calibrations
- Conform to ISA RP 16.6
