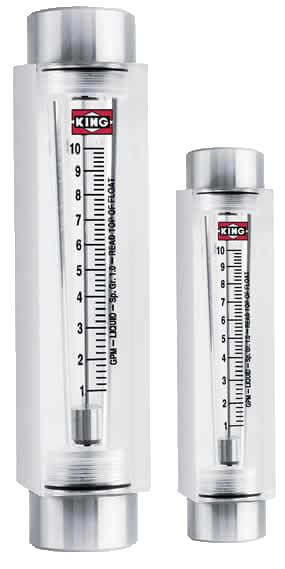

7510 & 7511 Series Acrylic Tube Flowmeter
Brand: King Instrument CompanyAcrylic block construction with direct reading scales have white screen printed backs to enhance scale readability. Connections are in-line for easy installation.
Features- Precision Machined Acrylic Meter
- Block Type, Panel Mountable
- In-Line Connections
- 50mm, 75mm, 100mm, 127mm, 250mm scales
- 0.12 – 20 GPM Water; 0.04 – 60 SCFM Air
1 - 12 of 396 Part Numbers
7510-1-1-2A-01
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 2.6 SCFH
7510-1-1-2A-02
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 7 GPH
7510-1-1-2A-03
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 5 SCFH
7510-1-1-2A-04
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 12 GPH
7510-1-1-2A-05
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 10 SCFH
7510-1-1-2A-06
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 22 GPH
7510-1-1-2A-07
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 20 SCFH
7510-1-1-2A-08
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 44 GPH
7510-1-1-2A-09
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 30 SCFH
7510-1-1-2A-10
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 60 GPH
7510-1-1-2A-11
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Air
- Air Flow - 70 SCFH
7510-1-1-2A-12
- Block Type - Block #2A, 50mm (2 Inch) Scale
- Fitting Material - Brass
- O-Ring Material - EPR
- Flow Type - Water
- Water Flow - 75 GPH
1 - 12 of 396 Part Numbers
Specifications
Brand
Metering Tube
- Machined cast acrylic
Internal Components
- 316L SS
Fitting Material
- PVC
- Brass
- 316L SS
Inlet/Outlet Fittings
- FNPT, vertical
O-Ring
- EPR
- Buna N
- Viton
Capacities
- Water: 7 GPH to 20 GPM
- Air: 2.6 SCFH to 60 SCFM
Scale
- 50mm, 65mm, 100mm, 127mm, 250mm direct reading
Accuracy
- ± 6% of full scale flow, 50mm scale
- ± 5% of full scale flow, 65mm scale
- ± 4% of full scale flow, 100mm scale
- ± 3% of full scale flow, 127mm scale
- ± 2% of full scale flow, 250mm scale
Turndown
- 10:1
Repeatability
- 3%, 50 mm scale
- 2%, 75 mm scale
- 2%, 100 mm scale
- 2%, 127 mm scale
- 0.5%, 250 mm scale
Maximum Pressure
- Water: 150 psig
- Air: 125 psig
