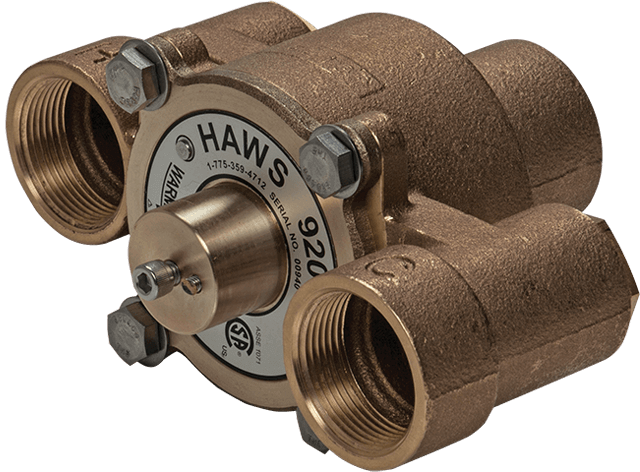

9201E - Thermostatic Mixing Valve

Brand: Haws Corporation
Add Product to My Catalog

Model 9201E emergency mixing valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment.

Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss.

No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate temperature measurement.
Features
  • A flow rate of 1 to 31 gpm (3.8 to 117.3 L) for better temperature control across the operating range
  • AXION's superior design and technology provide a complete safety solution for increased victim comfort.
  • Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
  • Wax based thermostat technology for fast response time with proven highly reliable temperature control
  • Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
  • Brass valve design with internal check stops
  • Over-sized valve seats resist failures caused by foreign matter
  • A new and efficient shuttle design eliminates valve sticking
  • A custom funnel design improves temperature control at low flow rates
  • Outlet temperature is factory set to 85°F (29°C).
  • Tempered water: High temperature limit is factory set to 90°F (32°C).
  • Cold water by-pass valves are closed during normal operation, regardless of flow rate.
  • CSA Listings: CSA certified per ASSE 1071, ANSI Z358.1, and applicable sections of CSA B125.3.

Specifications

Brand

Certifications

  • CSA Certified

Flow Rate

  • Maximum - 31 GPM (117 LPM)
  • Minimum - 1 GPM (4 LPM)

Hot Inlet Temperature

  • Maximum - 180° F (82° C)
  • Minimum - 120° F (49° C)

Recommended Hot Inlet Temperature

  • 140° F (60° C)

Cold Inlet Temperature

  • Maximum - 70° F (21° C)
  • Minimum - 40° F (4° C)

Adjustable Outlet Temperature Range

  • Maximum - 90° F (32° C)
  • Minimum - 60° F (16° C)

Operating Pressure

  • 125 psi (8.6 bar)

Factory Temperature Set Point

  • 85° F (29° C)

Cold Water Bypass

  • 20 GPM (76 LPM @ 30 psid)

Inlet Port

  • 1-1/4” NPT(f)

Outlet Port

  • 1-1/4” NPT(F)

Maximum Inlet Pressure Differential

  • ± 10 %

Documentation

MasterSpec® Files

Installation Drawing

Limited Warranty

Operational / Maintenance Manual

Parts Breakdown Drawing

Specification Sheet
