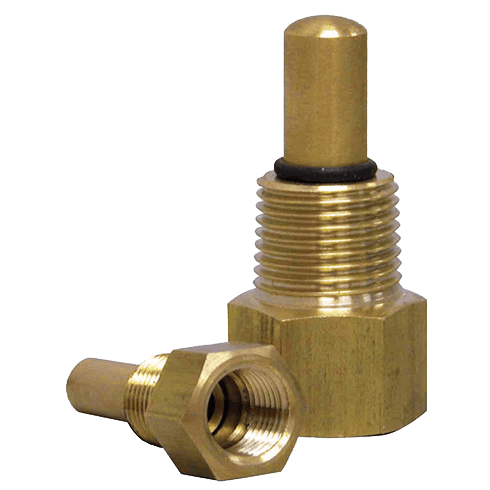

TST Tridicator Shut-Off Thermowell
Brand: Winters Instruments
Features
- Spring loaded allowing TST to stay open when tridicator is installed. Once tridicator is removed thermowell closes preventing media from exiting the system
- Minimizes system downtime with quick instrument replacement
- CRN registered
- Up to psi: 250 (kPa: 1,724, bar: 17.24) pressure rating (matching TTD Tridicator)
Specifications
Brand
Approvals & Certifications
- CRN
Insertion 'U' Length
- 1.3” (33.8 mm)
- 1.6” (41.5 mm)
Instrument Connection
- 1/2” NPT Female
- 1/4” NPT Female
Materials of Construction
- Brass
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Pressure Rating
- psi: 0 to 250 (kPa: 0 to 1,724, bar: 0 to 17.24)
Stem Length
- 1/2” NPT Connection: 2.65” (67.3 mm)
- 1/4” NPT Connection: 1.92” (48.8 mm)
- Boilers
- Hydronic Heating Systems
