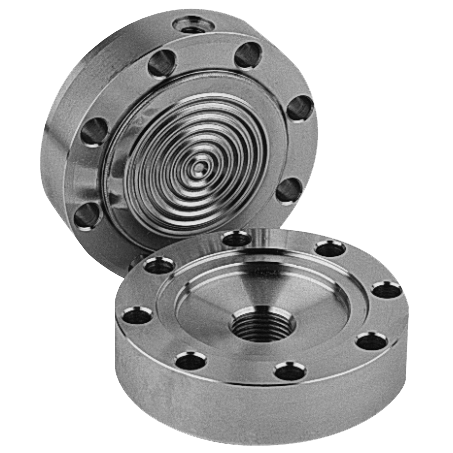

D71 NACE Diaphragm Seal (Hastelloy® C)
Brand: Winters Instruments
Features
- Can be used on applications requiring a NACE compliant MR0103-2003 diaphragm seal
- ASME B40.100 compliant
Specifications
Brand
Diaphragm Material
- Hastelloy C
Electrical Connectors
- Hex Bolt & Nut: M8 x 55
Enclosure, Body Material
- Hastelloy C
Fill Material
- Fluorolube
- Silicone
Gasket Material
- Buna-N
- Teflon
- Viton
Gauge Connection
- 1/2” NPT Female
- 1/4” NPT Female
NACE & NIST
- NACE MR-0103: 2003
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1/4” NPT Female
- 3/4” NPT Female
Pressure Range
- bar: 2.07 to 172.5
- kPa: 207 to 17,250
- psi: 30 to 2,500
Process Temperature
- -30° to 100° C (-22° to 212° F)
- Sour Gas Applications Requiring Instrumentation that Meet NACE International Standards
