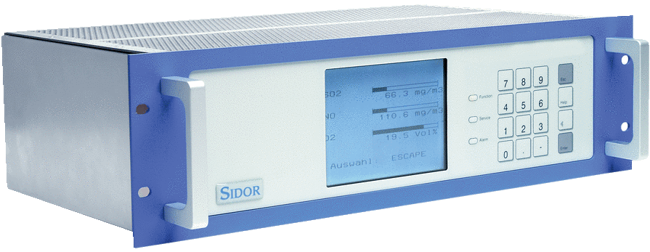

SIDOR Extractive Gas Analyzer

Brand: Sick AG

The SIDOR is a gas analyzer for measurement of up to 2 infrared components.

Additionally oxygen can be measured by integration of an electrochemical or paramagnetic measuring cell.

A significant characteristic is a half-yearly maintenance interval with test gases.

The stability of the measuring cells allows an adjustment with only inert gas or ambient air within this half-year period.

Sample gas pressure compensation is included as a standard.

The SIDOR was type approved for large combustion plants and crematories.
Features
  • Automated readjustment, self-monitoring, and fault diagnosis
  • Test gas only needs to be checked every 6 months
  • Long maintenance intervals
  • TÜV suitability testing and MCERTS certification according to EN 15267
  • Can be repaired on-site in many cases
  • Replacement of components without complicated factory temperature calibration

1 - 1 of 1 Part Numbers
SIDOR
SIDOR
SICK Extractive Gas Analyzers
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • MECERTS
  • CE
  • TÜV
  • cCSAus

Enclosure Rating

  • IP20

Gas Flow Rate

  • 30 to 60 L/h

Sample Gas Temperature

  • 0° to 45° C

Process Pressure

  • -200 to 300 hPa

Ambient Temperature

  • 5° to 45° C

Storage Temperature

  • -20° to 70° C

Humidity

  • Ambient: ≤ 95 % Relative Humidity, Non-Condensing

Communication

  • Modbus
  • RTU RS-232

Power Supply

  • Power Consumption: ≤ 150 VA
  • 48 to 62 Hz
  • 100 Vac, -15 % / +10 %
  • 115 Vac, -15 % / +10 %
  • 230 Vac, -15 % / +10 %

Measuring Range

  • CO₂: 0 to 500 ppm / 0 to 100 Vol. %
  • NO: 0 to 93 ppm / 0 to 3 Vol. %
  • N₂O: 0 to 100 ppm / 0 to 100 Vol. %
  • SO₂: 0 to 35 ppm / 0 to 3 Vol. %
  • O₂: 0 to 10 Vol. % / 0 to 25 Vol. %
  • O₂: 0 to 3 Vol. % / 0 to 100 Vol. %
  • CO: 0 to 60 ppm / 0 to 100 Vol. %
  • CH₄: 0 to 5,000 ppm / 0 to 100 Vol. %

Response Time

  • 3 s
  • 4 s
  • 30 s

Materials of Construction

  • Viton B
  • PVDF
  • Glass
  • Stainless Steel 1.4571
  • Platinum
  • Nickel
  • Aluminum
