D19-42 Diesel Hammer
Brand: PACO Ventures, LLC
Specifications
Brand
Pump Setting 1
- 21,510 ft-lb (29.2 kNm)
Pump Setting 2
- 28,035 ft-lb (38.0 kNm)
Pump Setting 3
- 35,260 ft-lb (47.8 kNm)
Pump Setting 4
- 42,480 ft-lb (57.6 kNm)
Blows Per Minute
- 37 - 52
Related Piston Stroke
- 5.3 - 10.5 ft (1.6 - 4.2 m)
Fuel Consumption at Full Load
- 2 gal/hr (7.6 L/hr)
Oil Consumption
- 0.16 gal/hr (0.6 L/hr)
Hammer
- 8,365 lb (3,795 kg)
Piston
- 4,015 lb (2,820 kg)
Hammer w/ Standard Guiding
- 9,700 lb (4,400 kg)
Fuel Tank
- 20 gal (75 L)
Oil Tank
- 20 gal

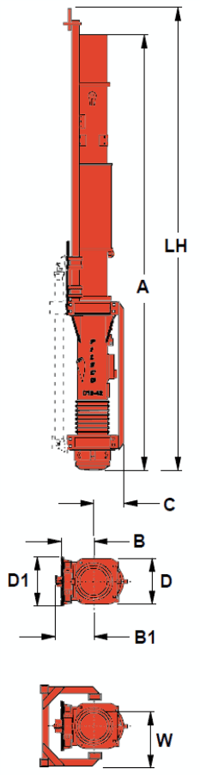

A - Length
- 18.4 ft (5,610 mm)
LH - Length, Standard
- 19.2 ft (5,850 mm)
B - Center to Trip
- 14 in (356 mm)
B1 - Center to Trip with Cylinder
- 21 in (559 mm)
C - Center to Pump Guard
- 16 in (406 mm)
D - Width of Hammer
- 19.5 in (495 mm)
D1 - Width of Trip
- 24.5 in (622 mm)
W - Minimum Lead Width
- 21 in (534 mm)
