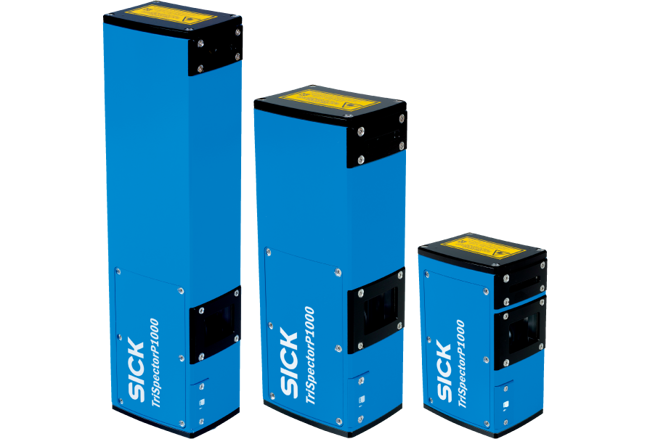

TriSpectorP1000 3D Machine Vision
Brand: Sick AGThe TriSpectorP1000 is a programmable 3D camera ready for Industry 4.0. Part of the SICK AppSpace eco-system, the 3D camera and the software tools that are included open up possibilities for tailor-made solutions – with easy commissioning and operation in areas such as quality control, robot handling, and profile verification.
The TriSpectorP1000 operates stand-alone and contains imaging, lighting, and analysis in a single rugged housing. Laser triangulation technology provides color-independent, contrast-independent, and true object shape data in millimeters.
The TriSpectorP1000 is the perfect choice for fully flexible, cost-efficient, in-line industry automation solutions.
At a glance
- 3D, 2D, and profile inspection of moving parts
- Imaging, lighting, and analysis in one housing
- SICK AppSpace, programmable 3D camera
- Full flexibility for tailored solutions
- SICK Algorithm API and HALCON
- Factory-calibrated 3D data
- Web user interface
- Fully flexible automation thanks to contrast-independent, true shape data in mm
- Tailor-made solutions with SICK AppSpace development framework
- Cost-efficient solutions with stand-alone 3D camera, ready for Industry 4.0
- Increased quality and less waste with in-line inspections of all parts in three dimensions
- Easy operation with customized web interface
- Commissioning and device replacement made easy with guaranteed field of view
- Operation in harsh environments with IP67 housing
1 - 10 of 10 Part Numbers
1091318
- Sub Product Family - TriSpectorP1008
- Working Distance - 56 to 116 mm
- Window Material - PMMA
- 3D Profile Resolution - 0.049 mm/px
- Type - V3T11P-MR12A8
1091319
- Sub Product Family - TriSpectorP1030
- Working Distance - 141 to 541 mm
- Window Material - PMMA
- 3D Profile Resolution - 0.215 mm/px
- Type - V3T12P-MR32A8
1091320
- Sub Product Family - TriSpectorP1060
- Working Distance - 291 to 1,091 mm
- Window Material - PMMA
- 3D Profile Resolution - 0.43 mm/px
- Type - V3T13P-MR62A8
1091321
- Sub Product Family - TriSpectorP1030
- Working Distance - 141 to 541 mm
- Window Material - Glass
- 3D Profile Resolution - 0.215 mm/px
- Type - V3T12P-MR32A7
1091322
- Sub Product Family - TriSpectorP1008
- Working Distance - 56 to 116 mm
- Window Material - Glass
- 3D Profile Resolution - 0.049 mm/px
- Type - V3T11P-MR12A7
1091323
- Sub Product Family - TriSpectorP1060
- Working Distance - 291 to 1,091 mm
- Window Material - Glass
- 3D Profile Resolution - 0.43 mm/px
- Type - V3T13P-MR62A7
1106177
- Sub Product Family - TriSpectorP 3D Belt Pick
- Working Distance - 141 to 541 mm
- Window Material - Glass
- 3D Profile Resolution - 0.215 mm/px
- Type - V3T12P-MR32A7S50
1106180
- Sub Product Family - TriSpectorP 3D Belt Pick
- Working Distance - 141 to 541 mm
- Window Material - PMMA
- 3D Profile Resolution - 0.215 mm/px
- Type - V3T12P-MR32A8S50
1106181
- Sub Product Family - TriSpectorP 3D Belt Pick
- Working Distance - 291 to 1,091 mm
- Window Material - Glass
- 3D Profile Resolution - 0.43 mm/px
- Type - V3T12P-MR62A7S50
1106182
- Sub Product Family - TriSpectorP 3D Belt Pick
- Working Distance - 291 to 1,091 mm
- Window Material - PMMA
- 3D Profile Resolution - 0.43 mm/px
- Type - V3T12P-MR62A8S50
1 - 10 of 10 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cTUVus
Enclosure Rating
- IP67
Scan/Frame Rate
- 5,000 3D Profiles/s
Light Source
- Internal Lighting
Configuration Software
- SICK AppStudio
Communication Interface
- Ethernet, TCP/IP, FTP, HTTP
- Serial: RS-232, RS-422
Ambient Operating Temperature
- 0° to 50° C
Window Material
- Glass
- PMMA
Height Range
- Maximum 60 to 800 mm
Working Distance
- 56 to 1,091 mm
- 3D robot guidance
- Part quality check
- Assembly check
- Bead inspection
- Profile verification
- Edge and surface defect detection
- OCR of embossed or engraved text
