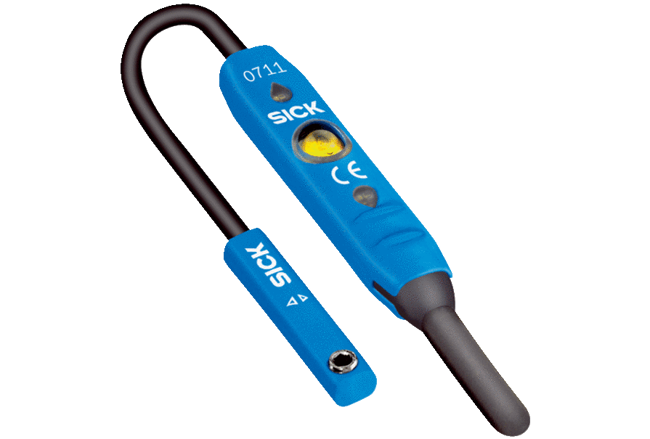

MZ2Q-C Sensor for C-Slot Cylinders
Brand: Sick AGOn pneumatic cylinders, grippers, or carriages, the MZ2Q magnetic cylinder sensors from SICK are able to detect two end positions or intermediate positions with just one sensor.
This is achieved by using two individually adjustable switching points in one sensor housing. This is much easier, quicker, and more cost-effective than conventional solutions, since only one slot is used.
As a result, mounting and cabling overheads are halved and applications can be solved efficiently.
At a glance
- Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders
- Drop-in mounting from above simplifies handling and assembly
- Easy adjustment of two switching points via teach-in pushbutton
- LEDs for indicating the two switching points
- Detection range up to 50 mm stroke
- One sensor, two switching points: Reduces commissioning time and costs
- Maximum flexibility thanks to a detection zone up to 50 mm
- Suitable for precise pneumatic applications due to intuitive and precise definition of two switching points
- Quick and easy installation and sensor replacement thanks to drop-in sensor mounting
- Flexible sensor settings, monitoring, advanced diagnostics and visualization through IO-Link (depending on type)
1 - 12 of 19 Part Numbers
1042237
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable, 4-Wire, 2 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSPSKU0
1042238
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSPSKP0
1042239
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable with Connector M8, 4-Pin, with Knurled Nuts, 0.5 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSPSKR0
1042240
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSPSKQ0
1042241
- Preferred Manufacturer Slot - Festo
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CFSPSKU0
1042242
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with M8 Male Connector, 4-Pin, 0.3 m
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CFSPSKP0
1042243
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M8, 4-Pin, with Knurled Nuts, 0.5 m
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CFSPSKR0
1042244
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CFSPSKQ0
1043696
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Switching Output - 2 x PNP
- Smart Sensor - Enhanced Sensing, Efficient Communication
- Type - MZ2Q-CSLPSKQ0
1043697
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M12, 4-Pin, with Knurled Nuts, 0.3 m
- Smart Sensor - Enhanced Sensing, Efficient Communication
- Communication Interface - IO-Link
- Type - MZ2Q-CFLPSKQ0
1044557
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable with Connector M8, 4-Pin, with Knurled Nuts, 0.5 m
- Switching Output - 2 x PNP
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSPSKR0S01
1046234
- Preferred Manufacturer Slot - SMC, Bimba, Schunk
- Connection Type - Cable, 4-Wire, 3 m
- Switching Output - 2 x NPN
- Smart Sensor - None
- Communication Interface - None
- Type - MZ2Q-CSSNSKUA
1 - 12 of 19 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- cULus
- EAC
Switching Output
- 2 x PNP
- 2 x NPN
Ambient Operating Temperature
- 10° to 35° C
- -20° to 75° C
Cable Length
- 0.3 to 3 m
Connection Type
- Cable, 4-Wire
- Cable with M8 Male Connector, 4-Pin
- Cable with Connector M12, 4-Pin, with Knurled Nuts
- Cable with Connector M8, 4-Pin, with Knurled Nuts
Communication Interface
- IO-Link
Output Function
- NO
Special Features
- Special Hysteresis
- Software V303
- Housing Black
- Special Software Setting
Cylinder Type with Adapter
- SMC Rail ECDQ2
- SMC Rail CDQ2
Housing Length
- 19.5 mm
Supply Voltage
- 12-30 Vdc
