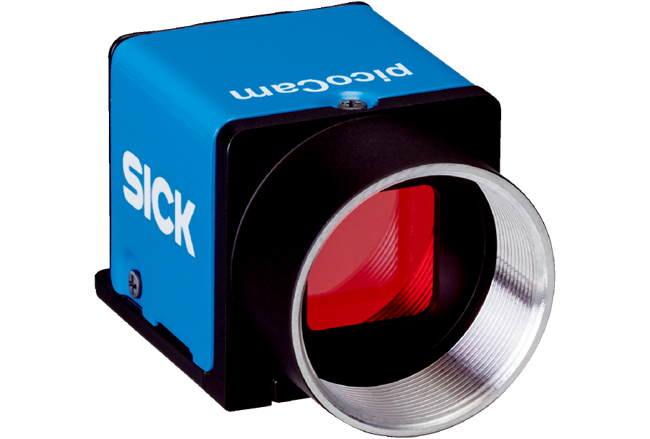

picoCam2 2D Machine Vision
Brand: Sick AGThe picoCam2 GigE vision-compatible camera family is ideally suited to applications where space is restricted. So that it can be used in industrial environments, the picoCam2 has a screw-fit RJ45 GigE interface – the standard for industrial image processing – as well as industry-grade plug connectors for the voltage supply and trigger signals.
As an alternative, it is also possible to operate it with just one cable measuring up to 100 m in length using Power over Ethernet (PoE).
The picoCam2 is available with 1, 3 or 5 megapixel resolution in color and monochrome variants. CMOS image sensors use global shutter technology and enable multiple image sections (AOI). Image recording and transmission are decoupled in the internal 126 MB memory bank, meaning multi-camera applications are supported.
At a glance
- Ultra-compact housing
- Power over Ethernet (PoE)
- Wide-range voltage supply 12 V DC ... 24 V DC
- Screw-fit RJ45 GigE interface
- Screw-fit Hirose plug connector for the voltage supply and digital inputs and outputs
- Color and monochrome variants
- Connection for c-mount lenses
- The picoCam2 family is ideal for use on the Sensor Integration Machine (SIM), supporting complex image processing tasks
- Ideal for multi-camera applications, e.g., several cameras on the SIM
- Simple operation using just one connecting cable thanks to PoE
- Reliable, even in very tight spaces
- Compatible with the GigE vision interface standard
- Simple plug and play installation on the SIM thanks to pre-assembled cables
1 - 6 of 6 Part Numbers
6071820
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,456 px x 1,088 px (1.58 Mpixel)
- Sensor Used - Sony IMX273
- Type - I2D301M-2RCA11
6071822
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,456 px x 1,088 px (1.58 Mpixel)
- Sensor - CMOS Color
- Sensor Used - Sony IMX273
- Type - I2D301C-2RCA11
6071823
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 2,048 px x 1,536 px (3.15 Mpixel)
- Sensor Used - Sony IMX265
- Type - I2D303M-2RCA11
6071824
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 2,048 px x 1,536 px (3.15 Mpixel)
- Sensor - CMOS Color
- Sensor Used - Sony IMX265
- Type - I2D303C-2RCA11
6071825
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 2,448 px x 2,048 px (5.01 Mpixel)
- Sensor Used - Sony IMX264
- Type - I2D305M-2RCA11
6071826
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 2,448 px x 2,048 px (5.01 Mpixel)
- Sensor - CMOS Color
- Sensor Used - Sony IMX264
- Type - I2D305C-2RCA11
1 - 6 of 6 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
Voltage Supply
- 12-24 Vdc
Sensor
- CMOS Monochrome / CMOS Color
Sensor Resolution
- 1,456 px x 1,088 px (1.58 Mpixel)
- 2,048 px x 1,536 px (3.15 Mpixel)
- 2,448 px x 2,048 px (5.01 Mpixel)
Light Source
- External Illumination
Lens
- C-mount
Optical Format
- 1/3”
- 1/1.8”
- 2/3”
Communication Interface
- Ethernet UDP/IP
Configuration Software
- SICK Vision Suite
- Single or multi-camera systems in conjunction with the Sensor Integration Machine (SIM)
- Automated image processing applications in the automotive, robotics, electronics, solar, and food and beverage industries, for example, for quality inspection, traceability, and object detection
