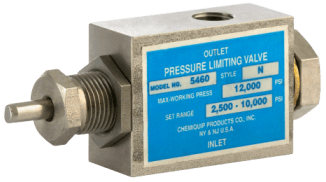

High-Pressure Limiting Valve
Brand: Chemiquip Products Co IncThe adjustable automatic action Pressure Limiting Valve - Overpressure Protector Model 5460 & 5500, is for use with liquid & gases to protect systems from over range at operating pressure up to 22,500 psi.
The valve automatically shuts off pressure to the gauge if the pressure rises above the adjustable pre-set pressure, and automatically restores the instrument on-line when pressure falls below the pre-set value.
Features- Achieves Pressure Gauge Protection
- Automatic Positive Protection
- Accurate Repeatable Performance
- Available in 3 set Ranges, the Shut-off Pressure is Adjustable from 100 to 10,000 psi
- When Used in Conjunction with a Chemiquip Snubber it Assures Positive, Repeatable Performance of Valve and Gauge by Protecting Against Surges, Pulsations and Entrained Solids Inclusions
- Swift, Simple External Adjustment
- Outfitted with ¼” NPT 5460 or ½” NPT 5500 Female Inlet and Outlet Ports
- Compact and Installs in Line
- Each Valve is Tested Before Shipping
Specifications
Connection
- 1/4” NPT Female
- 1/2” NPT Female
Materiel
- Stainless Steel 300 Series
- (Special) Other Material
Style
- 100-800 psi
- 800-2500 psi
- 2500-10,000 psi
Seal / Temperature Range
- Viton 0° F to +400° F
- Buna -20° F 𝑡𝑜 + 250° F
- EPDM -70° F to +250° F
- (Special) Other Seals
