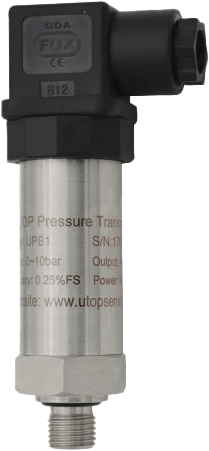

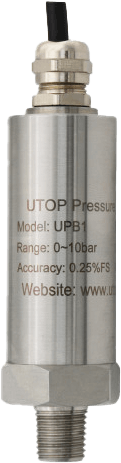

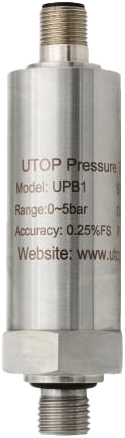

Gas Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, Ltd
UPB1 gas pressure transmitter uses isolated stainless steel diaphragm as sensing element, which is based on piezo-resistive silicon technology.
This product is fully tested by computer automatically, and trimmed by laser for zero and sensitivity in a wider temperature range. Its amplifier circuit is built in stainless steel housing, to transform sensor signal into standard output signal.
UPB1 gas pressure transmitter features integrated construction, rigid and robust, high measuring accuracy etc.
Features- Against thunder stroke, against radio-frequency interference
- Full stainless steel construction
- Reversed-polarity, transient current & voltage protection
- Anti-corrosion, anti-attrition, anti-impact
Specifications
Pressure Medium
- Gas or Liquid Compatible to Stainless Steel
Pressure Ranges
- -1-0 ~ 0.1-1000 bar
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V, 0.5 ~ 4.5 V
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
Load Resistance
- RL=(U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Supply Voltage
- 12 ~ 36 Vdc
Compensated Temperature Range
- 0° ~ 70° C
Operating Temperature Range
- -30° ~ 80° C
Storage Temperature Range
- -40° to 120° C
Process Connection
- G 1/2" or others
Electrical Connection
- DIN 43650 or others
Material of Wetted Part and Housing
- 1Cr18Ni9Ti
Material of Pressure Membrane
- 316L
- UPB13 Gas Pressure Transmitter is widely used for Pressure Measurement and Control of Petroleum, Chemical Industry, Metallurgy, Power Station etc.
