Digital Manometer

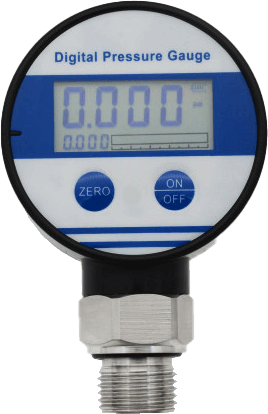

Brand: Xi'an UTOP Measurement Instrument Co, LtdUIY6 Digital Manometer is made with entire electronic structure, and uses battery as power supply. It is easy for field installation.
UIY6 Digital Manometer is using high accuracy piezoresistive pressure sensors, which is located in the front end of UIY6.
The output signal of the pressure sensor is processed and amplified by high accuracy and low temperature coefficient amplifier, and then transferred to A/D switch to transform digital signal which can be processed by microprocessor.
After processing operation, the pressure gauge will demonstrates the actual value of the pressure by LCD indicator. The use of UIY6 Digital Manometer is obviously flexible, and its operation is very simple.
Features- LCD display, high resolution, without apparent value error
- Peak value recording function, record the max. pressure value during measuring process
- Pressure percentage dynamic demonstration (progress strip demonstration)
- Selectable ranges: MPa, psi, bar, kPa, kg/cm²
- Micro power loss function, can work above 2 years in the electricity saving pattern
- Backlight display for easy reading
Specifications
Pressure Gauges
- -1-0 ~ 0.1-1000 bar
Pressure Type
- Gauge
- Absolute
- Sealed Gauge
- Differential
Overload Pressure
- 150 % Full Scale
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
LCD Display
- 4-digit
Battery Power Supply
- 9 Vdc Alkaline Battery
Compensated Temperature Range
- -10° ~ +70° C
Operating Temperature Range
- -30° to +80° C
Process Connection
- G 1/2" or others
Housing Material
- 1Cr18Ni9Ti and Plastic
- This Digital Manometer is widely used in such Industries as Water and Electricity, Running Water, Petroleum, Chemical, and Machinery etc
