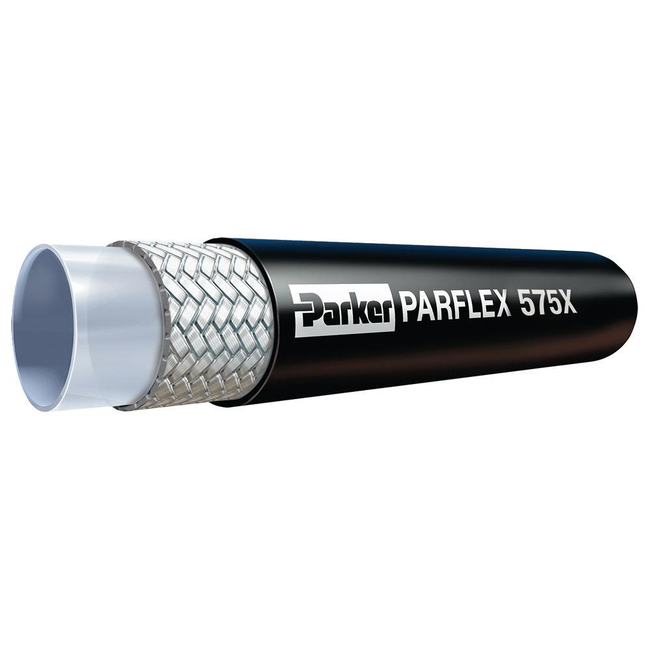

Fast Response Constant Pressure Hose - 575X/575XN 5,000 psi
Brand: Parker HannifinParflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast and accurate response time.
The 575X is capable of operating at a 5,000 psi constant pressure.
It is MSHA accepted and exhibits rapid response even over long lengths, making it the optimal solution for marine and oilfield service market applications.
Features- Fast response even over longer lengths
- Reduced weight without compromising performance
- Resistant to pin hole leaks
- 5000 psi constant working pressure
Specifications
Brand
Applications
- Marine, Manufacturing / Industrial, Oilfield, Construction, Material Handling
Color
- Black
Compatible Fittings
- CG Series
Hose I.D. (inch)
- 3/16”, 1/4”, 3/8”, 1/2”, 3/4”, 1
Hose I.D. (mm)
- 5, 6, 10, 13, 19, 25
Hose I.D. (Size)
- -3, -4, -6, -8, -12, -16
Hose O.D. (inch)
- 0.43 to 1.59
Hose O.D. (mm)
- 11 - 40
Hose Type
- General-purpose
Industry Standards
- MSHA (575X Only)
Maximum Working Pressure (bar)
- 345
Maximum Working Pressure (Mpa)
- 34.5
Maximum Working Pressure (psi)
- 5000
Maximum Working Temperature (°C)
- 100° C
Maximum Working Temperature (°F)
- 212° F
Media
- Chemical Fluids, Hydraulic Fluids, Lubricants, Water
Minimum Bend Radius (inch)
- 1-1/2” - 10
Minimum Bend Radius (mm)
- 38 - 254
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
Vacuum Rating (inches of Hg)
- 28
Vacuum Rating (mm of Hg)
- 711.2
Weight (kg/m)
- 0.07 - 0.70
Weight (Lbs/Ft)
- 0.05 - 0.48
- Applications requiring fast and accurate response time
- Oilfield service
- Offshore drilling
