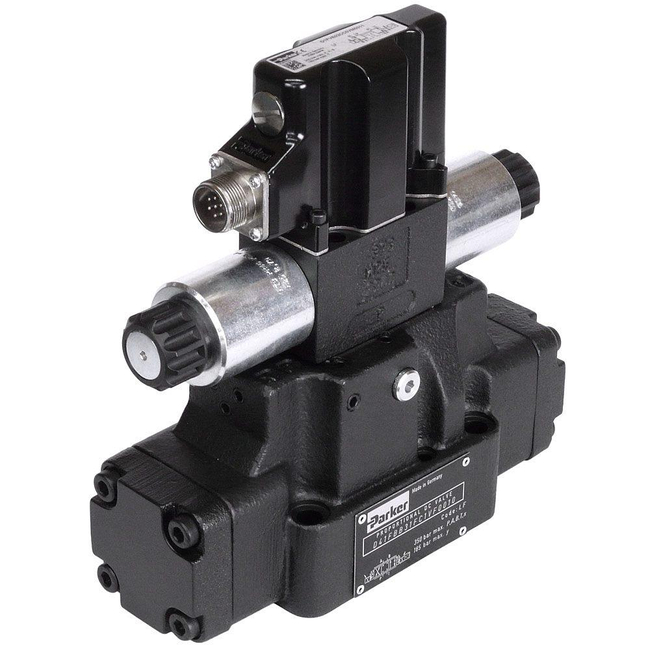

Pilot-Operated Proportional Directional Control Valve - Series D31FB / D41FB / D91FB / D111FB
Brand: Parker HannifinRepresenting Parker's extensive experience in industrial hydraulics, the pilot operated proportional DC valves series D*1FB is universally applicable and feature progressive flow characteristics for sensitive flow rate adjustment.
The standard performance valves have proven very successful in numerous applications all over the world.
Series D*1FB is characterized by a solid design which ensures a long lifetime.
It offers an excellent price-performance ratio and best conditions for an economic, reliable operation.
The pilot operated proportional directional control valves D*1FB are available in 4 sizes:
- D31FB - NG10 (CETOP 05)
- D41FB - NG16 (CETOP 07)
- D91FB - NG25 (CETOP 08)
- D111FB - NG32 (CETOP 10)
Series D*1FB*EE explosion proof The D*1FB*EE with explosion proof solenoids is the ATEX certified version of the standard D*1FB series and equipped with IECEx compliant solenoids.
It allows the usage in hazardous environments.
The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400 (to be used in an explosion-proof cabinet or outside the hazardous area).
Features- Centre position monitoring optional
- Energy saving A-regeneration optional (not for ex-proof valves)
- Switchable hybrid version optional (not for ex-proof valves)
- Option for D*1FB explosion-proof: coil to permit ambient temperature up to +60 °C, modification XG371
- Proven design - ensures reliable operation
- Progressive flow characteristics - allows sensitive adjustment of flow rate
- High flow capacity - optimum efficiency in relation to valve size
- Excellent price-performance ratio - fast return of investment
- Short delivery time - no storage necessary
Specifications
Brand
Operation Type
- Pilot
Function
- 3-Way
Maximum Operating Temperature
- 60° (explosion-proof: 40) °C
For Fluid Type
- Hydraulic Oil According to DIN 51524 - 535, Water Glycol
Product Series
- Proportional DC Valve
Seal Material
- NBR
- FPM
Actuation Type
- Proportional, Solenoid
Mounted Position
- Unrestricted
Minimum Operating Temperature
- -20° (standard version with NBR seal: -25) °C
Weight
- Depending on Size, 8.6 to 69.3 kg
Mounting Style
- Subplate Mounting
- Machine Tool
- General Presses
- Tire Presses
