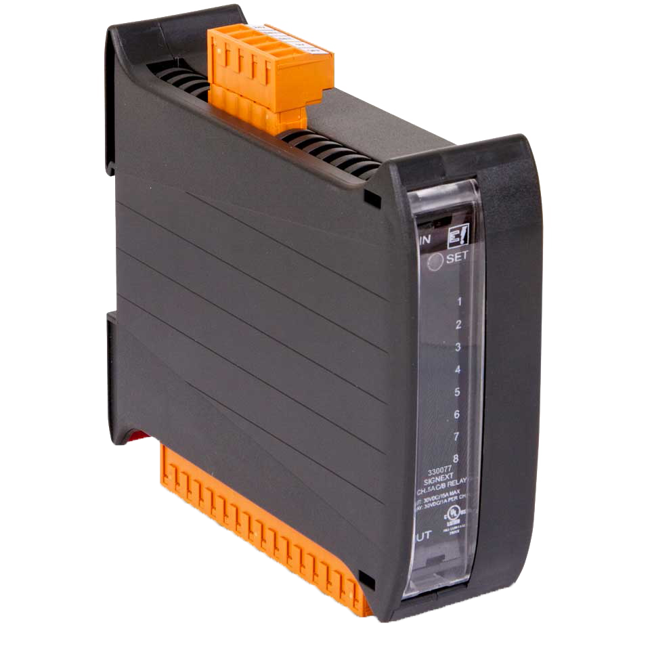

SIGNEXT 8-Channel Circuit Breaker/ Relay Module

Brand: Emphatec
Add Product to My Catalog

The SIGNEXT 8 Channel Circuit Breaker module provides 8 remotely controllable DC circuit breakers in a 35 mm wide DIN rail mounted housing. That means less than 4 mm per breaker!

The breaker mechanism is a supplemental rated thermal device that remains off once it has tripped (most thermal breakers reset automatically and cycle on and off if the fault is still present). Resetting a tripped breaker is accomplished via a pushbutton on the module or via a digital input.

The reset is common to all 8 breakers. LEDs indicate the status of each channel. All restrictions associated with supplemental breakers apply to this module.
Features
  • Single power input and 8 protected outputs in a 35 mm wide housing

  •  Designed for 24 Vdc applications

  •  All connections via plug and socket connectors

  •  0 V terminations provided for each output so no additional terminal blocks required

    • 1 - 1 of 1 Part Numbers
    SIGNEXT 8 CHANNEL
    SIGNEXT 8 CHANNEL
    • Current - 8 x 0.5 A
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Approvals & Certifications

    • UL (C,US) E256770

    Current

    • 15 A, Max.
    • 2 A, Max.
    • Interrupting Current: 500 A

    Electrical Connectors

    • 26 to 12 AWG
    • Plug & Socket Connection

    Indication

    • LED

    Input

    • 24 Vdc Nominal

    Mounting

    • DIN Rail

    Operating Temperature

    • -20° to 40° C (-4° to 104° F)

    Output

    • 24 Vdc

    Storage Temperature

    • -40° to 60° C (-40° to 140° F)
