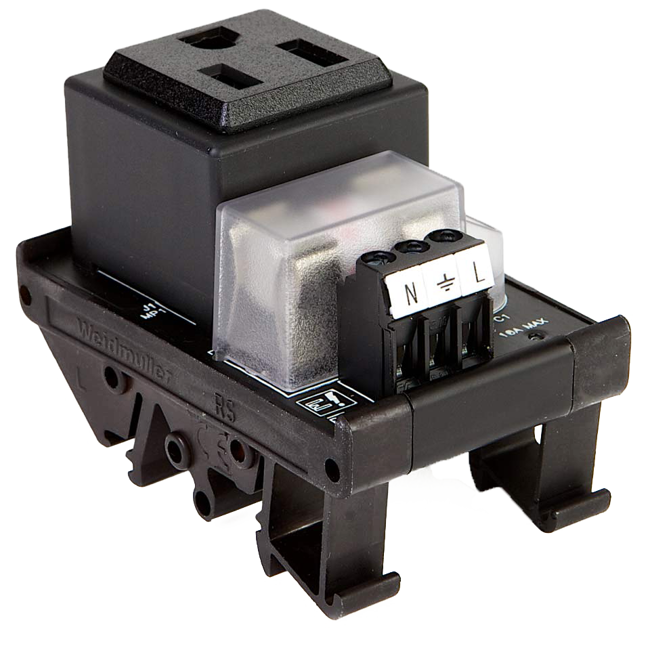

Vanguard-ACFT Fused AC Outlet Module

Brand: Emphatec
Add Product to My Catalog

The latest addition to Emphatec’s line of AC outlet modules is the ACFT version with on-board branch fuse.

The fuse, a T-class type, provides a 10 kA interrupting current rating. An LED provides indication that the fuse is healthy and the power is applied to the module.
Features
  •  Compact AC outlet for installation in control cabinets

  •  T-Class branch rated fuse and status indicating LED

  •  120 Vac, 10 A

  • Mounts on 32 mm and 35 mm DIN rails

    • Specifications

    Brand

    Approvals & Certifications

    • UL (C,US) (UL 508, CSA 22.2 No.14)

    Current

    • Current: 10 A, Max.

    Electrical Connectors

    • 26 to 12 AWG

    Indication

    • LED

    Mounting

    • 32 mm & 35 mm DIN Rails

    Operating Temperature

    • -10° to 40° C (14° to 104° F)

    Torque

    • 0.5 to 0.6 Nm

    Voltage

    • 120 Vac Nominal

    Documentation

    Data Sheets
