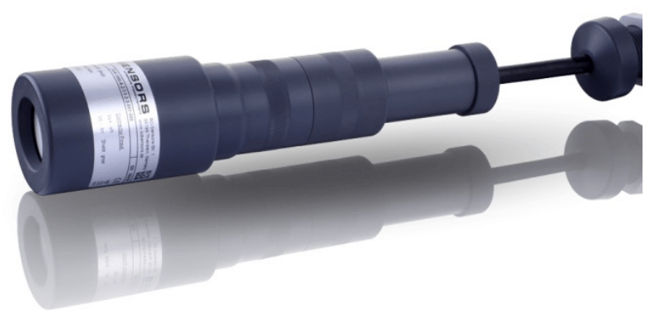

LMK 858 Level Probe

Brand: BD Sensors

The Separable plastic submersible probe LMK 858 is designed for level measurement in most aggressive media.

Usage in more viscous media as for example sludge is possible because of the semi-flush diaphragm. I

n order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.

Another special feature of the LMK858 is the separability of the probe head and cable part.

This advantage reduces maintenance or service tasks and also simplifies storage.
Features
  • Cable and sensor section detachable
  • Chemical resistance
  • Housing PP-HT

Specifications

Brand

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
  • IEC 60770
  • REACH
  • RoHS
  • TÜV NORD

Diaphragm Material

  • Ceramics Al₂O₃ 99.9 %, Al₂O₃ 96 %

Enclosure, Body Material

  • PVC

Environmental Protection

  • IP68

Output

  • 0-10 V, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.03 to 9.80
  • kPa: 3.92 to 980.7
  • meters WC 0.4 to 100
  • psi: 0.56 to 142.2

  • Chemical Industry
  • Environmental Industry
