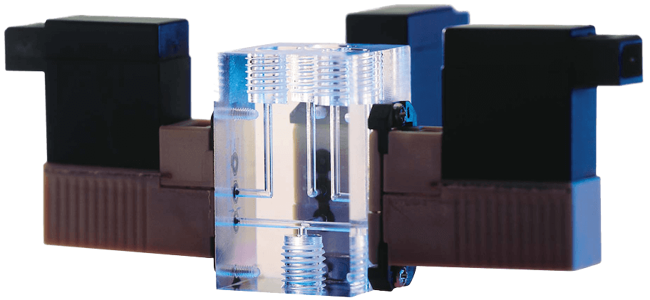

6604 2/2 & 3/2 Flipper Solenoid Valve

Brand: Burkert Fluid Control Systems

The direct-acting Type 6604 solenoid valve is unique. It combines fast, precise switching behaviour with reliable media separation, and the design eliminates heat transfer between fluid and coil.

The use of high quality materials makes it possible to also use it where high chemical resistance is required.

The optional impulse model works with the smallest energy requirement, and is therefore especially suitable for battery operation; the heat transfer to the medium is negligible for this model.

A minimal dead volume and gap-free internal design make it possible to use it in medical, analytical and laboratory technology.
Features
  • Low internal volume
  • High chemical resistance
  • Low power consumption
  • Optional impulse model
  • High back pressure tightness

1 - 12 of 32 Part Numbers
140 463
140 463
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 12 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 464
140 464
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 24 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 465
140 465
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 12 Vdc
  • Electrical Connection - Flying Leads 300 mm
140 466
140 466
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 24 Vdc
  • Electrical Connection - Flying Leads 300 mm
140 467
140 467
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Bistable (Impulse Drive)
  • Voltage - 6 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 468
140 468
  • Model - Flange Connection
  • Circuit Function - 2/2-Way Valve, Normally Closed
  • Orifice Size - 0.6 mm
  • Function - Bistable (Impulse Drive)
  • Voltage - 6 Vdc
  • Electrical Connection - Flying Leads 300 mm
140 469
140 469
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 12 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 470
140 470
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 24 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 471
140 471
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 12 Vdc
  • Electrical Connection - Flying Leads 300 mm
140 472
140 472
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Monostable
  • Voltage - 24 Vdc
  • Electrical Connection - Flying Leads 300 mm
140 473
140 473
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Bistable (Impulse Drive)
  • Voltage - 6 Vdc
  • Electrical Connection - Rectangular Plug 5.08 mm
140 474
140 474
  • Model - Flange Connection
  • Circuit Function - 3/2-Way Valve Universal Function
  • Orifice Size - 0.6 mm
  • Function - Bistable (Impulse Drive)
  • Voltage - 6 Vdc
  • Electrical Connection - Flying Leads 300 mm
1 - 12 of 32 Part Numbers

Specifications

Ambient Temperature Range

  • 55° C (131° F) - Max.

Cable Length

  • Electrical Connection: 1 feet (0.3 metres)

Consumption

  • Power: 1.5 W

Direct Mount

  • Yes

Duty Cycle

  • 100 % Duty Cycle Continuous Rating

Electrical Connectors

  • 2 Single Flying Leads
  • Rectangular Plug

Electrical Contacts

  • Normally Closed

Enclosure, Body Material

  • Coil: Polyamide (PA)
  • PEEK

Environmental Protection

  • IP40 with Rectangular Plug

Flow Rate

  • Water: 0.006 Kv (m³/hour)
  • Water: 0.1 Kv (L/min)

Function

  • Cycling: Bistable
  • Monostable
  • Universal

Materials of Construction

  • Mounting Clips: AISI 301 Stainless Steel, 1.4310
  • Multi Station Manifold: PEEK

Media

  • Agressive Liquids & Gases

Mounting

  • Sub-base Valve: Screw Mount

Mounting Position

  • Preferably with Flange Downwards

Operating Voltages

  • 12 Vdc
  • 24 Vdc
  • 6 Vdc

Orifice Size

  • 0.023” (0.6 mm)

Override

  • Push Manual Override

Pressure Range

  • Vacuum - psi: -43.5 (kPa: -300, bar: -3)

Process Temperature

  • 0° to 50° C (32° to 122° F)

Screw Material

  • AISI 301 Stainless Steel 1.4310

Seat / Seal Material

  • Flange Seal: FFKM (Perfluorelastomer)

Solenoid Type

  • 2/2-Way
  • 3/2-Way

Tolerance

  • Voltage: ± 10 %

UNF/UNC Connection

  • 1/4”-28 UNF

Viscosity

  • 21 mm²/sec, Max.
