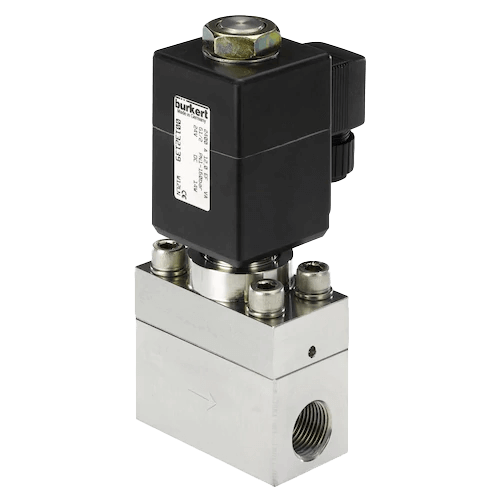

2400 2/2-Way Solenoid Valve
Brand: Burkert Fluid Control Systems
The servo-assisted Type 2400 valve has a servo-piston with a 2-way servo-control.
It is designed for high pressures. The speciality of this valve design lies in the layout of the seat and sealing element.
An additional radial seal make very good sealing possible. The tapered sealing element of the servo-control permits the switching of high pressure at relatively low coil power.
Features- Push-over solenoid system
- Stainless steel body
1 - 11 of 11 Part Numbers
000 284
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 160
- Body / Seal Material - Brass Nickel-Plated / PTFE/FKM
- Voltage / Frequency - 24 V, 50 Hz
000 422
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 250
- Body / Seal Material - Stainless Steel / PCTFE/FKM
- Voltage / Frequency - 220-230 V / 50 Hz
000 455
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 160
- Body / Seal Material - Brass Nickel-Plated / PTFE/FKM
- Voltage / Frequency - 220-230 V / 50 Hz
000 520
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 250
- Body / Seal Material - Stainless Steel / PCTFE/FKM
- Voltage / Frequency - 24 Vdc
002 366
- Orifice - 5 mm
- Port Connection / Pressure Range - G 1/4” / bar: 1 to 200
- Body / Seal Material - Brass / PEEK/FKM
- Voltage / Frequency - 24 Vdc
002 367
- Orifice - 5 mm
- Port Connection / Pressure Range - G 1/4” / bar: 1 to 250
- Body / Seal Material - Brass / PEEK/FKM
- Voltage / Frequency - 220-230 V / 50 Hz
002 369
- Orifice - 8 mm
- Port Connection / Pressure Range - G 3/8” / bar: 1 to 210
- Body / Seal Material - Brass / PEEK/FKM
- Voltage / Frequency - 24 Vdc
002 370
- Orifice - 8 mm
- Port Connection / Pressure Range - G 3/8” / bar: 1 to 250
- Body / Seal Material - Brass / PEEK/FKM
- Voltage / Frequency - 230 V / 50 Hz
006 725
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 160
- Body / Seal Material - Brass Nickel-Plated / PTFE/FKM
- Voltage / Frequency - 24 Vdc
132 436
- Orifice - 8 mm
- Port Connection / Pressure Range - G 3/8” / bar: 1 to 250
- Body / Seal Material - Brass / PEEK/FKM
- Voltage / Frequency - 24 V, 50 Hz
134 690
- Orifice - 12 mm
- Port Connection / Pressure Range - G1/2” / bar: 1 to 250
- Body / Seal Material - Stainless Steel / PCTFE/FKM
- Voltage / Frequency - 24 V, 50 Hz
1 - 11 of 11 Part Numbers
Specifications
Ambient Temperature Range
- Maximum
BSP Connection
- G 1/2” Female
- G 1/4” Female
- G 3/8” Female
Consumption
- Power Consumption (AC Hold, DC Inrush, Hold): 20 W
- Power Consumption (AC): 48 VA (Hold)
- Power Consumption (AC): 85 VA (Inrush)
Cycling Rate
- 80/Minute
Duty Cycle
- 100 % Continuous Rating
Electrical Connectors
- Cable Plug
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- Brass
- Nickel-Plated
- Stainless Steel
Environmental Protection
- IP65 with Cable Plug
Flow Rate
- Water: 0.6 to 2.6 Kv (m³/hour)
Materials of Construction
- Valve Internals: Stainless Steel
Media
- Neutral Gases & Fluids
Mounting Position
- Preferably with Actuator Upright
Operating Voltages
- 24 V / 220-230 V / 50 Hz
- 24 Vdc
Orifice Size
- 0.196” to 0.472” (5 to 12 mm)
Pressure Range
- AC - psi: 14.5 to 3,626 (kPa: 100 to 25,000, bar: 1 to 250)
- DC - psi: 14.5 to 3,046 (kPa: 100 to 21,000, bar: 1 to 210)
Process Temperature
- PEEK/FKM, PCTFE/FKM, PTFE/FKM: -10° to 80° C (14° to 176° F)
Response Time
- Closing: 300 milliseconds (Pressure Relief 100 to 10 %)
- Closing: 500 milliseconds (Pressure Relief 100 to 10 %)
- Opening: 100 milliseconds (Pressure Build-Up 0 to 90 %)
- Opening: 200 milliseconds (Pressure Build-Up 0 to 90 %)
Seat / Seal Material
- Seal: FKM
- Seal: PCTFE
- Seal: PEEK
- Seal: PTFE
Solenoid Type
- 2/2-Way
Tolerance
- Voltage Tolerance: ± 10 %
Viscosity
- 21 mm/sec
