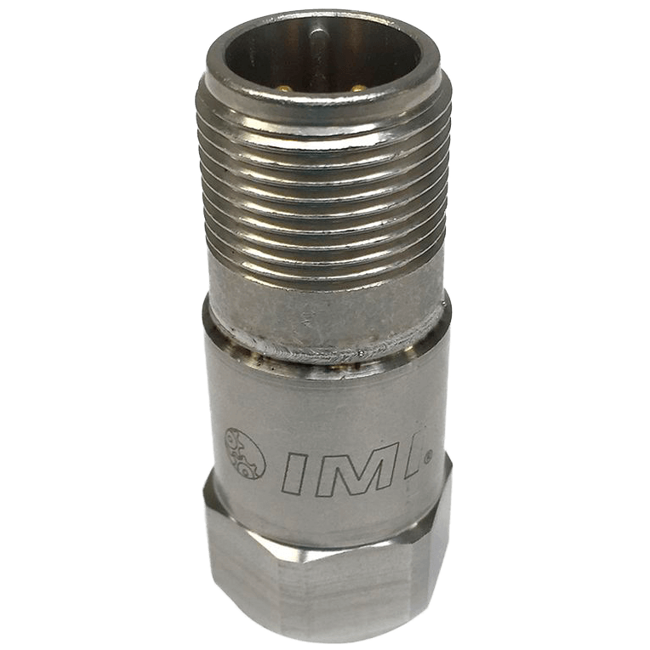

A0322L5 Low Cost Accelerometer
Brand: AMSA basic accelerometer with a wider sensitivity range and a simpler (single point) calibration than a premium accelerometer. Ideal for permanent mounting in an online monitoring application.
Features- Range of accelerometers covers all standard applications
- Triaxial accelerometer reduces time spent collecting data
- Swivel-based, low-profile accelerometers eliminate cable strain
- Many items developed in partnership with industry-leading manufacturers
Specifications
Brand
Excitation Voltage, Current
- 18 to 28 Vdc / 2 to 20 mA
Frequency Range (± 3 dB)
- 0.5 to 10,000 Hz (30 to 600,000 cpm)
Measurement Range
- ± 50 G (± 490 m/sec²)
Operating Temperature
- -54°C to 121°C (-65°F to 250°F)
Sensitivity (± 10%)
- 100 mV/g (10.2 mV/m/sec²)
Shock Limit
- 5,000 G Pk (49,050 m/sec²)
Transverse Sensitivity
- ≤ 7 %
Weight
- 51 g (1.8 oz.)
