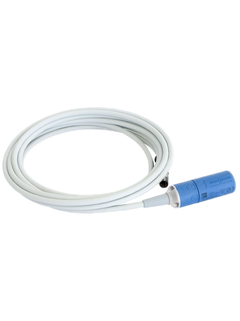

Digital Measuring Cable CYK20
Brand: Endress+Hauser Group Services AG
CYK20 is a flexible data cable allowing reliable connection of your Memosens sensors to the Memobase Plus sensor software and the Liquiline To Go handheld. It guarantees absolute water-proof connection and provides an easy to use inductive coupling with no contact corrosion. Benefit from completely safe and reliable signal transmission without contact corrosion or interference potentials.
CYK20 is a Memosens data cable for lab use in all industries. It is suitable for the following parameters:
- pH/ORP
- Dissolved oxygen (amperometric)
- Conductive conductivity
- Disinfection
It connects all sensors with a Memosens plug-in head to:
- Memobase Plus CYZ71D software (Memolink)
- Liquiline To Go CYM290/CYM291 handheld
With its international explosion-protection approvals, such as ATEX and IECEx, the cable is suitable for hazardous area use.
Features- Specially designed for lab use: flexible, easy to handle, fast connection of sensors of various parameters
- Maximum process safety via non-contact, inductive and digital signal transmission: no contact corrosion, absolutely watertight, no interference potential
- Approved for hazardous area use
Specifications
Measuring
- pH
- Conductivity
- Oxygen
Certifications & Approvals
- IECEX EX ia II C T6 Ga
- ATEX EX II 1G Ex ia II C T6 Ga
Ingress Protection
- IP65
Dimensions
- Diameter: 4.5 mm (0.18 inch)
- Length: 1.5 m + 3 m (4.9 ft + 9.8 ft)
- Cores: 2x2 Cores, Twisted Paires
- For Contactless, Inductive, Digital Transmission of Measurement Signals
