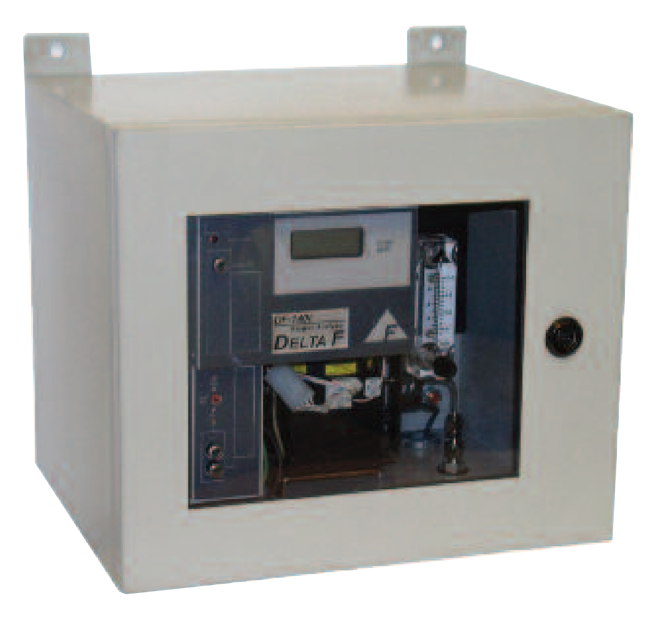

DF-140E Process Analyzer
Brand: SERVOMEXThe DF-140E is a Coulometric sensor based Analog oxygen analyzer designed to measure trace and percent levels of oxygen in a broad variety of applications.
The NEMA 4X enclosure allows the DF-140E to be installed in a non-protected environment.
Features- Non-depleting sensor with 5 year sensor warranty
- Factory calibrated
- Minimum maintenance
- Fast response time and recovery from upset conditions
- NEMA 4X suitable for outdoor installation
Specifications
Brand
Ambient Temperature Range
- 0° to 45° C (32° to 113° F)
Approvals & Certifications
- CE
- Electrical Safety to IEC 61010-1: Ed 2 (Rated for ”Installation Category II” in Accordance with IEC 60664-1, Rated for ”Pollution Degree 2” in Accordance with IEC 60664-1)
- EMC Directive (2001/89/336/EEC)
- LVD (Low Voltage Directive (LVD) 2002/73/23EEC)
Environmental Protection
- IP66
- NEMA 4 (Class I / II, Div. 2)
- NEMA 7
Humidity
- 0 to 95 % Relative Humidity, Non-Condensing
Measuring Range
- Operating Ranges: 0 to 1 ppm up to 0 to 25 %
Power Requirement
- 22-28 Vdc, 1 A (Max.) 110/220 Vac 50/60 Hz, 35 W, Max.
Tube Inlet
- 1/4” Compression
Tube Outlet
- 1/4” Compression
