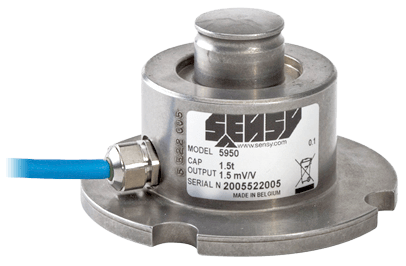

5950 Low Profile Compression Load Cell

Brand: Sensy - Sensors & Synergy S.A.

Load cell combining high capacity, low design and cost effective solution.
Features
  • Stainless steel
  • Protection IP 67
  • Low design
  • Sturdy design
  • Cable length: 6 m
  • Available options (non exhaustive list):
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • High service temperature (up to 150° C)

1 - 4 of 4 Part Numbers
5950-10T-0.1
5950-10T-0.1
SENSY Load Cell, SST, 0.1% Accuracy, 10 Ton, IP67, 20 Meter Cable Length
  • Stainless Steel Construction
  • Capacity: 10 ton
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.1
  • Cable Length: 20m
  • Protection: IP67
  • Output Signal (Sensitivity): 1.5mV/V

Included Options:
5950-1T-0.25
5950-1T-0.25
SENSY Load Cell, SST, 0.25%, 1t, IP67, 8 m
Compression Load Cell
Stainless Steel Construction
Capactity: 1t
Breaking Load: 300%
Maximum Operating Load: 150%
Accuracy Class: 0.25
Cable Length: 8m
Protection: IP67
Output Signal (Sensitivity): 1.5mV/V
ATEX
5950-E551-C6-X
5950-E551-C6-X
SENSY Compression Load Cells +3 Output 4-20 mA ATEX, 16 mA, 45 klbs, 300% Breaking Load, IP67
  • 45klbs Load Cell Capacity
  • Stainless Steel Construction
  • Breaking Load 300%
  • Maximum Operating Load 150%
  • 0.1 Accuracy
  • 180°C Service Temperature
  • 16 mA Output Signal (Sensitivity)
  • ATEX and IP67
5950-E551-C6-XXX
5950-E551-C6-XXX
SENSY Compression Load Cells +3 Output 4-20 mA ATEX, Handle, 3/4" FNPT/30K/8-Holes
1 - 4 of 4 Part Numbers

Specifications

Accuracy

  • 0.1 % of Full Scale
  • 0.25 % of Full Scale

Applications

  • Hoppers
  • Reactors
  • Silos
  • Tanks

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
  • CE

Cable Length

  • 19.69 feet (6 metres)

Capacity

  • 0.3 to 20 T

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 megaohms

Linearity

  • < ± 0.1 % to < ± 0.25 % of Full Scale

Load

  • Breaking Load: > 300 % of Full Scale
  • Permissible Dynamic Loading: 40 % of Full Scale

Load Limit

  • 150 % of Full Scale

Repeatability

  • < ± 0.03 % to < ± 0.1 % of Full Scale

Resistance

  • Input/Output: 702 ± 2 ohms

Sensitivity

  • < ± 0.3 % - Tolerance
  • 1.5 mV/V

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Static Lateral Force

  • 10 % of Full Scale

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Zero Balance

  • ± 0.02 mV/V
