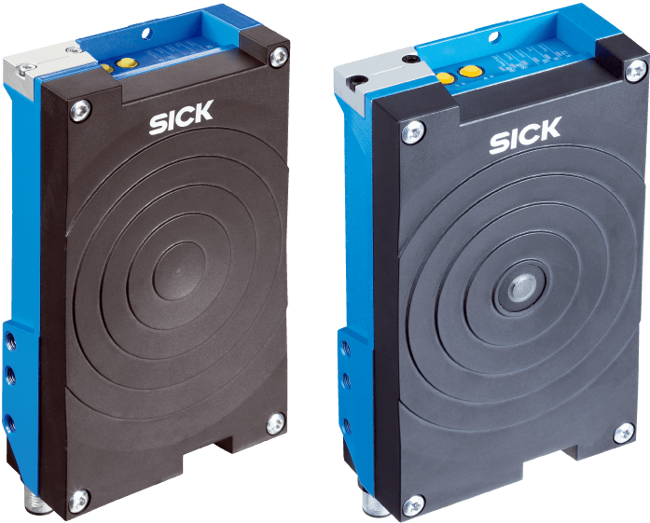

RFH6xx Series RFID

Brand: Sick AG

The RFH6xx is an ISO/IEC 15693-compatible RFID read/write device for read ranges of up to 240 mm.

Thanks to its compact design and integrated antenna, the RFH6xx can be used to flexibly and inexpensively expand existing systems.

Support for standard fieldbus systems via a universal connector facilitates integration into practically any application.

Integrated signal and data processing allow the identification process to run at extremely high speeds.

The direct use of trigger signals and situational control of output mean it can be used as an independent remote unit.

The configurable data output formats enable integration into existing IT infrastructures.

The RFH6xx complies with the CE and FCC requirements for wireless equipment and can therefore be used worldwide.

The intuitive SOPAS user interface makes it easier to access other functions (cloning, diagnostics, heartbeat, script language, time-controlled data output ...).

Features

Reliable identification guarantees maximum throughput
Adapts to changing needs, providing long-term investment security
Simple integration saves installation time
The defined reading field ensures targeted identification of the desired object
Maintenance-free
Compact RFID read/write device with integrated antennae and several host interfaces do not require additional connectivity
The same connectivity and user interface as the bar code scanners and image-based code readers from SICK - compatible thanks to the uniform 4Dpro

1 - 4 of 4 Part Numbers

per page:

1044838

Read Range - Max. 150 mm
Connection Type - Cable
Type - RFH620-1000001

1044839

Read Range - Max. 150 mm
Connection Type - Ethernet
Type - RFH620-1001201

1054746

Read Range - Max. 240 mm
Connection Type - Ethernet
Type - RFH630-1102101

1054747

Read Range - Max. 240 mm
Connection Type - Cable
Type - RFH630-1000001

1 - 4 of 4 Part Numbers
