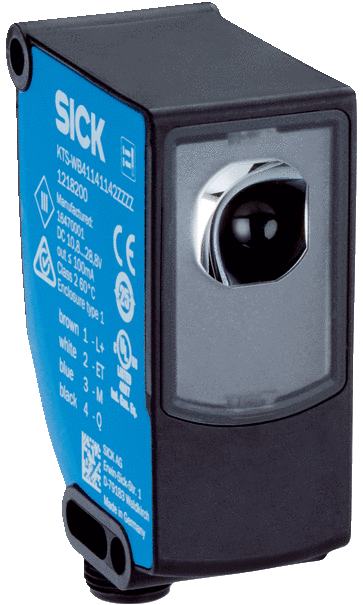

KTS Core Contrast Sensor
Brand: Sick AGHigh performance for universal application in a range of applications: The new KTS Core in modern design with white LED or RGB LED and VISTAL® housing impresses with its switching frequency and gray line resolution, different teach-in variants and manual switching threshold adjustment.
A response time of 20 µs and a jitter of 10 µs ensure reliable and accurate detection of contrast differences, e.g. in print marks, even on high-gloss materials.
Thanks to various teach-in processes and manual switching threshold adjustment, commissioning is more flexible and detection more stable.
The KTS Core detects even the smallest differences in contrast and is therefore well-suited for use in a wide range of applications.
Features- High switching frequency for use in quick machine processes with high switching accuracy requirements
- Display and flexible sensor settings for easy sensor handling and user-friendly operation
- High gray line resolution enables the detection of very small contrast differences and high-gloss materials - high process stability and fewer downtimes
- Various teach-in processes for ideal sensor and process setting in different applications
- Manual switching threshold adjustment supports stable material detection and individual sensor adaption to different contrasts
Specifications
Brand
Sensing Distance
- 13 mm
Type of
- LED RGB
- LED White
Light Spot Size
- 1.2 mm x 3.9 mm
Switching Frequency
- 12.5 kHz
- 25 kHz
Response Time
- 40 µs
- 20 µs
Switching Output
- Push-Pull: PNP/NPN
- PNP, NPN
- NPN
Adjustment Type
- 2-Point Teach-in
- Teach-in Dynamic
- 2-Point Teach-in, Teach-in Dynamic
Connection Type
- Male Connector M12, 4-Pin
Certification & Approval
- CE
- cULus Listed
