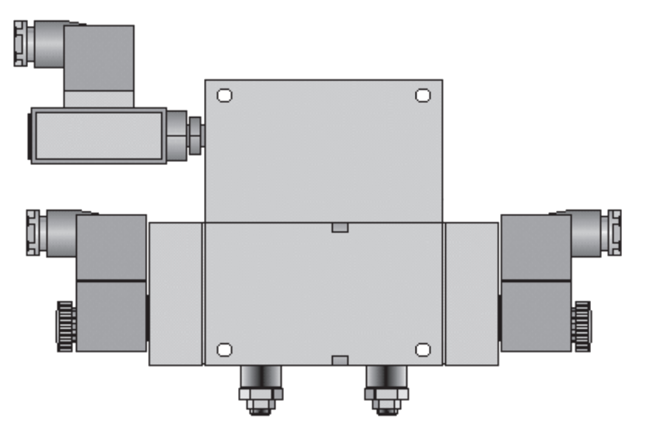

5/2-Way Valve Interference Sensing Module, 1/4 inch
Brand: Parker ORIGA CorporationThe interference sensing module was designed to automatically reverse the direction of a pneumatic cylinder, when it detects an obstruction. Loss of back pressure, caused by an obstruction, triggers the built-in pressure switch to shift the valve and retract the cylinder
Specifications
Brand
Type
- Body Ported Valve
Style
- Spool Valve
Port Size
- 1/4
Weight (mass)
- 1.43 (0.65)
Installation
- In any position
Ambient Temperature Range °F (°C)
- ϑmin 14° F (-10° C)
- ϑmax 140° F (+60° C)
- Note: When using below freezing point it is necessary to consult factory.
Medium Temperature Range °F (°C)
- ϑmin 14° F (-10° C)
- ϑmax 158° F (+70° C)
- Note: When using below freezing point it is necessary to consult factory
Medium
- Filtered compressed Air
Lubrication
- We recommend the use of mineral oil Type VG32 to ISO 3463
- With or without lubrication
Nominal Pressure (psi (bar))
- 87 (6)
Operating Pressure Range (psi (bar)) - Single Solenoid
- P min 0
- P max 145 (10)
Nominal Flow (Cv (I/min))
- 3.5 (3500)
Operating Pressure Range (psi (bar)) - Double Solenoid
- P min 22 (1.5)
- P max 145 (10)
Operating Pressure (psi (bar))
- minimum 22 (1.5)
- Maximum 116 (8)
Filtration
- 40 micron recommended
Nominal Pressure
- psi (bar) 87 (6)
Voltage (V)
- AC 110, 220
- DC 12,24
Duty Cycle
- Continuous duty
Electric Protection
- IP65 to DIN 40050
Insulating Material
- VDE 0580
Connection
- Plug to DIN 43650 form B
- Doors
- Machine Guards
- Conveyor Transfer
- Pallet Handling
- Feed Systems
- Elevator Systems
- Variable Height Pick & Place
