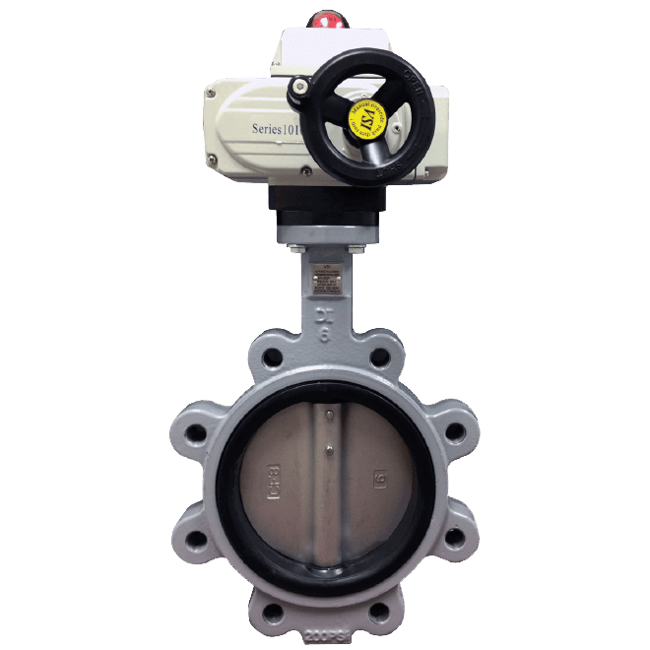

VSI Butterfly Valve, 2100 Series

2100 Series Butterfly Valve

Brand: Valve Solutions
Add Product to My Catalog

VSI Butterfly Valve, 2100 Series
The Series 2100 butterfly valve is available in full cut (200 PSI close off) and undercut (100 PSI close off).

VSI Series 2100 butterfly valves have proven to be the most versatile design standard in the building and process control industries.

Available as a tested package with a wide range of electric and pneumatic actuators and accessories to fit any application.
Features
  • Ductile iron body
  • SS 304 disc
  • EPDM seat
  • 100/200 PSI close off
  • Sizes 2″ to 30″

View_Details

Specifications

Brand

Applications

  • Commercial Heating & Air Conditioning
  • Food & Beverage Products
  • Paper & Pulp Products
  • Sea Water
  • Wastewater & Water Treatment

Approvals & Certifications

  • ISO 5211

Bushing Material

  • Luberized Bronze
  • PTFE

Disc Material

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Aluminum Bronze
  • Ductile Iron
  • Nylon Coated Ductile Iron

Enclosure, Body Material

  • Cast Iron (A126 Class B)
  • Ductile Iron (A536 65-45-12)
  • Stainless Steel

Flange Size - 10” (DN 250)

  • 10” (DN 250)

Flange Size - 12” (DN 300)

  • 12” (DN 300)

Flange Size - 14” (DN 350)

  • 14” (DN 350)

Flange Size - 16” (DN 400)

  • 16” (DN 400)

Flange Size - 18” (DN 450)

  • 18” (DN 450)

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65)

Flange Size - 2” (DN 50)

  • 2” (DN 50)

Flange Size - 20” (DN 500)

  • 20” (DN 500)

Flange Size - 24” (DN 600)

  • 24” (DN 600)

Flange Size - 3” (DN 80)

  • 3” (DN 80)

Flange Size - 30” (DN 750)

  • 30” (DN 750)

Flange Size - 4” (DN 100)

  • 4” (DN 100)

Flange Size - 5” (DN 125)

  • 5” (DN 125)

Flange Size - 6” (DN 150)

  • 6” (DN 150)

Flange Size - 8” (DN 200)

  • 8” (DN 200)

O-Ring Material

  • Ethylene Propylene (EPR)

Seat / Seal Material

  • Buna-N
  • EPDM
  • Hypalon
  • Neoprene
  • PTFE
  • Regular & High-Temperature Viton

Shaft Material

  • 304 Stainless Steel (Shaft Pins)
  • 316 Stainless Steel (Shaft Pins)
  • 416 Stainless Steel
  • Monel (Shaft Pins)

Temperature Range

  • -34° to 204° C (10° to 400° F)

Torque

  • 22,155 In/Lbs

  • Commercial Heating & Air Conditioning
  • Waste Water & Water Treatment
  • Sea Water
  • Food & Beverage Products
  • Paper & Pulp Products

Documentation

Data Sheets

Manual
