Warrick Alarm Panel, RA431

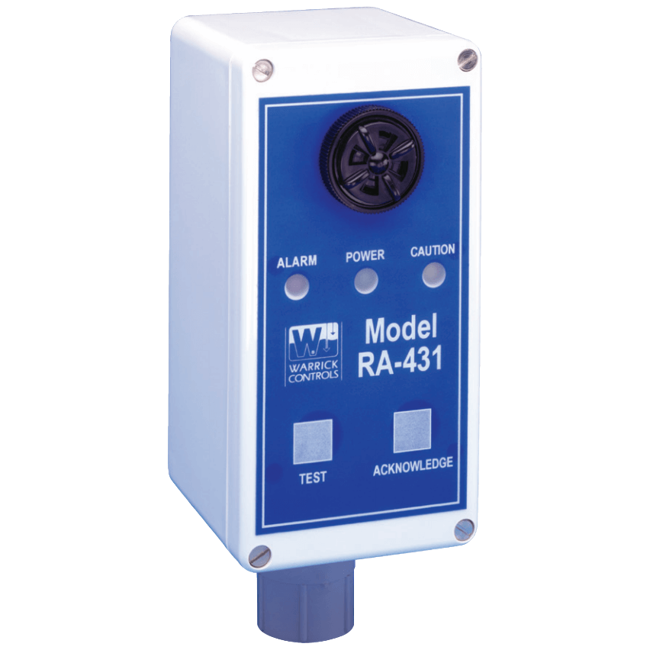

Warrick RA431 Alarm Panel

Brand: Gems Sensors, Inc
Add Product to My Catalog

Warrick RA431 Series can be used with conductivite probes, has a small footprint design and a size 6 pan head screw connections.
Features
  • Can be used with conductivity probes
  • Small footprint design
  • Size 6 pan head screw connections

1 - 2 of 2 Part Numbers
RA-431A-0
RA-431A-0
  • Electrical Contacts - Normally Open Dry (Sensor Normally Dry)
RA-431B-0
RA-431B-0
  • Electrical Contacts - Normally Closed Dry (Sensor Normally Wet)
1 - 2 of 2 Part Numbers

View_Details

Specifications

Brand

Applications

  • Above Ground Storage Tanks (AST): Leak Detection, Overfill
  • Liquid Level Alarms: High/Low Floats
  • Underground Storage Tanks (UST): High Level Alarm, Leak Detection, Piping Sumps

Approvals & Certifications

  • UL 508 Motor Control, File E138209

Cable Length

  • Maximum

Conduit Connection

  • 3/4” NPT Female

Connection Material

  • Conduit Connection Material: PVC

Electrical Connectors

  • Terminals: Size 6 Pan Head Screws with Captive Wire Clamping Plate

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • Weather Tight Polycarbonate

Environmental Protection

  • IP66
  • NEMA 4

Indication

  • Red, Green & Yellow Solid-State LED

Output Noise

  • Audible Alarm: Field Adjustable from 77 to 97 dB at 2 feet

Sensitivity

  • 0 to 26 kiloohms/cm, Max.

Supply Voltage

  • 120 Vac, 10 % / -15 %, 4.8 VA, Max.
  • Sensor Voltage: 12 Vac
  • Sensor Voltage: 12 Vdc

Temperature Range

  • -5.5° to 65.5° C (-22° to 150° F)

  • Above Ground Storage Tanks (AST): Leak Detection, Overfill
  • Liquid Level Alarms: High/Low Floats
  • Underground Storage Tanks (UST): High Level Alarm, Leak Detection, Piping Sumps

Documentation

Data Sheets
