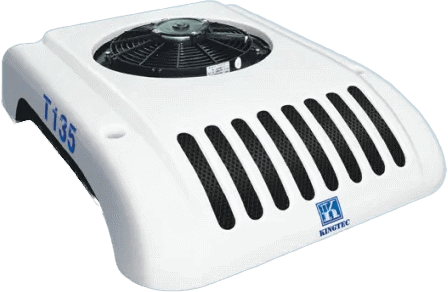

T135 / T135E Transport Refrigeration
Brand: Kingtec USAKingtec’s T135 unit is designed for fresh, frozen and deep frozen applications on the 4~25m3 refrigerator trucks and vans.
The road compressor is powered by an electric motor, making it possible to use electric standby to drive the unit. The stand-by units are installed in the condensing units.
Specifications
Brand
30° C (86° F) Ambient Temperature ATP Standard
- Air Return/On The Road: 0° C (32° F) , Watts: 1990 , BTU/hr: 6800
- Air Return/On The Road: -20° C (-4° F) , Watts: 960 , BTU/hr: 3280
100° F(38° C) Ambient Temperature US Standard
- Air Return/On The Road: 2° C (35° F) , Watts: 1560 , BTU/hr: 5300
- Air Return/On The Road: -18° C (0° F) , Watts: 900 , BTU/hr: 3070
Refrigerent (Chlorine Zero)
- T135: HFC R404A 1.0 kg (2.6 lb)
Road Compressor
- Displacement: 108 cc
- Maximum recommended Speed: 3000 RPM
Airflow Volume
- EVK200C evaporator: 1200 m³/h (705 cu ft/min)
Electrical Specification
- DC voltage options: DC12 V or DC24 V
- Total current consumption on the road (Road compressor)
Weights (Approximate)
- T135 Condenser Assembly: 26 kg/57Lb
- EVK200C Evaporator Assembly: 22 kg/48Lb
