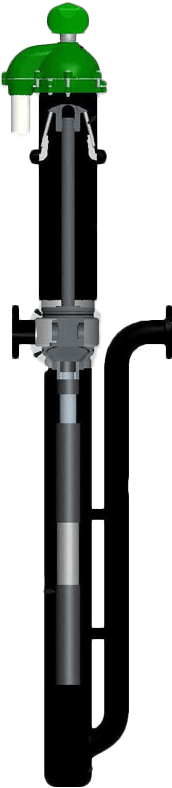

Pitless Booster Stations
Brand: Baker Water Systems DivisionThe Monitor Pitless Booster Station is a unique device designed for increasing waterline pressure or filling water towers.
The Pitless Booster houses a submersible turbine pump, below grade, within a sealed tank reservoir. The Pitless Booster can house pumps up to 30” in diameter.
The Pitless Booster offers easy motor service by allowing access from the ground level by lifting our the inner assembly.
Units with tank reservoirs 16” diameter or less are constructed using cast (or steel) spool and cast iron discharge bodies. Units with tank reservoirs 18” or larger are fabricated using cold-rolled steel.
Note: Pitless units conform to the Recommended Standards for Water works, Great Lakes Upper Mississippi River Board of State Public Health & Environmental Managers and Water Systems Council PAS-97 (04) Standards.
Features- Smaller footprint
- Elimination of the need for a building or structure
- Elimination of motor noise and no confined space entry
- Options Include:
- Secondary conduit entry for signal wires
- Wire seals
- Suction and discharge transducer tappings
- Locking caps
- Easy Access to Service - Well cap can be removed without disconnecting cables. O-ring seals on spool permit withdrawal of the entire inner assembly simply by lifting. Replacement is equally simple. Spool support eliminates vertical adjustment allowing service above ground.
- Corrosion Protection - Spool and Discharge Body are either lead free hot-dipped galvanized or constructed of corrosion resistant material for longer life, less service.
- Reliable Seal - Neoprene O-rings between accurately machined lead free hot-dipped galvanized surfaces on the spool and within the unit provide positive seals to ensure maintenance free performance.
- O-ring Seal Protection - Monitor seal protection prevents seal damage during installation and service eliminating potential service costs.
- Quick to Install - A quality booster pump installation can be made easily and economically without delay for masonry or building construction creating a sound cost savings solution.
- Alternative Spools (6x7 and 8x10 only) - Spools are available plain or with silent check valves. The Monitor silent check valve has its operating parts automatically exposed when the spool is withdrawn. Spools are supplied with tappings for pressure controls.
- Watertight Well Cap - Designed to permit removal without disconnecting cables. Watertight cable and conduit sealing is available for additional protection.
- Hold Down - Supplied with each unit. Hold-down pipe also serves as lift-out pipe for installation and allowing speedy service.
- FROST PROOF... No heating is required. All water passages are below the frost line.
- Alternative Discharge & Inlet Connections... Are available to meet your requirements.
Specifications
Screened Well Vent Tap Size
- 1-1/2” NPT
Seal Cap
- The Watertight cap bolts to a compression seal ring securing around the pitless case and comes with the screened well vent installed
Conduit Tapping Size
- 1-1/2” NPT Watertight conduit seals for most common cable sizes are available for watertight cap
- 2” & 1” NPT without sealed conduit connection: 2” & 1”, 2”, 3” or 4” NPT with sealed conduit connection. Watertight conduit seals for most common cable sizes are available
Depth Tester Tapping
- 1/4” NPT
Distance from Ground Level to Top of Pitless Case
- 12”
Distance from Ground Level to Top of Screened Well Vent
- 28-1/4”
- 27-9/16”
- 28-1/2”
- 21-13/16”
- 19-1/2”
Pitless Case Internal Diameter Size
- 7”
- 6”
Pitless Case Wall Thickness
- 0.375”
- 0.280”
- 0.300”
Hold-Down, Lift-Out Pipe Size
- 1-1/4” NPT
- 2” NPT
Designed “Lift-Out” Mechanism Load
- 15,000 lbs
Designed "Lift-Out" Assebmly Load
- 4700 lbs
Discharge Body Size
- 8-3/4” O.D. x 8-15/16” long
Discharge Body - Threaded
- Discharge Body outside diameter: 9-11/16”
- Discharge Body length: 11-1/4”
Discharge Body - KwiKonect
- Discharge Body Outside Diameter: 10”
- Discharge Body length: 12-9/32”
Pitless Unit Minimum Inside Diameter
- 6-3/8”
- 6”
- 9-1/8”
- 10”
- 12”
- 15-1/4”
Discharge Connection Tapping Size
- 3” NPT
Pitless Unit to Well Casing Connection Inside Diameter
- 6-3/8”
Spool Design Load
- 15,000 lbs
- 4200 lbs
Motor Cable Passages Through Spool
- 13/16”, 1-3/4”
Spool to Drop Pipe Connection
- 3” NPT
Pressure Zone Tapping
- 3/8” NPT (2)
Dimension from Center of Discharge Outlet to Bottom of Weld Nipple
- 9-3/8”
Overall Length of Seal Cap
- 12-7/8”
Dimension from Center of Discharge to Bottom of Discharge Body
- 7-3/4”
Dimension from Center of Well Casing to the End of the Discharge Outlet
- 5-25/32”
Component Materials
- Tank & Inlet Pipes- Steel, Black Corrosion Resistant Coating
- Cap - Cast Iron, Green Enamel Finish
- Conduit Box - Steel, Black Corrosion Resistant Coating
- Combination Hold-Down & Lift Out Mechanism - Lead-free Galvanized
- Hold-down Pipe - Steel, Corrosion Resistant Coating
- Discharge Body -Steel, Lead-free Galvanized/Ductile or Cast-Iron, Lead-free Galvanized
- Pitless Case - Steel, Corrosion Resistant Coating
- Spool - Steel, Lead-free Galvanized
- Probe tube - 1” PVC
- Conduit Seal & O-Rings - Neoprene
- Note: - Inlet pipe & tank pepe tested to 200 P.S.I., spool discharge pressure tested to 300 P.S.I.
- Note: - Any combination between Drop Pipe and Discharge Outles size is possible, if required
