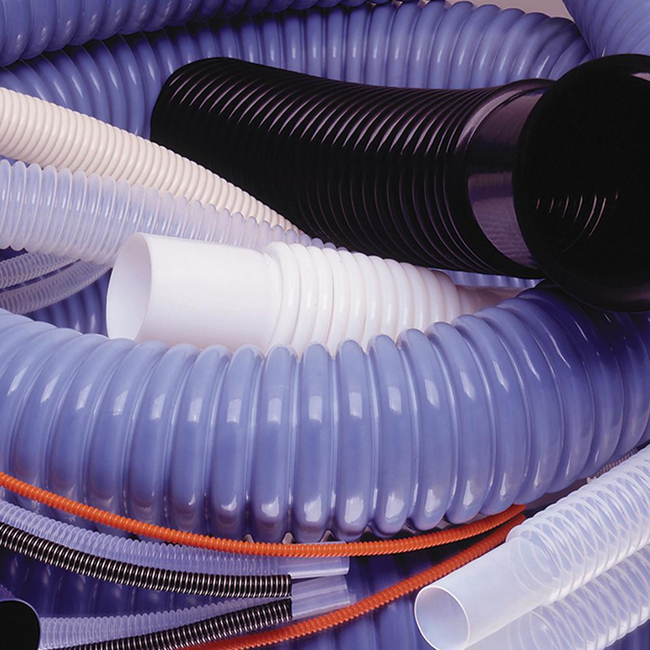

Convoluted Tubing – Extra Flexible Tubing

Convoluted Tubing – Extra Flexible Tubing

Brand: Parker Hannifin
Add Product to My Catalog

Convoluted tubing is very flexible and is ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.

Parker manufactures one of the largest selections of convoluted tubing. Product offerings include MIL Spec Convoluted Tubing for electrical conduit (81914), Wire Wrapped Convoluted Tubing to achieve a tighter bend radius.

Low Profile Convoluted with a larger inside diameter for increased flow and a Heavy Wall Convoluted that is produced with a thicker wall to reinforce the strength of the tube.

The added material in heavy wall convoluted withstands flanging and flaring, allowing the tubing to actually pass through the inside of the fitting so it can be flared over the face of the fitting.

This eliminates the problem of bacterial entrapment and adds the benefit of unrestricted flow by providing 100% PTFE coverage on all wetted surfaces.
Features
  • Available in chemically inert PTFE, FEP, ETFE, PFA or High Purity PFA
  • Low coefficient of friction
  • Moisture retention is less than 0.01%
  • Excellent flex life
  • Low void content
  • Very large selection of sizes ranging from 1/8” I.D. up to 4” O.D.
  • Wire-wrap reinforcement can be added for increased vacuum applications or when a tighter bend radius is needed

Specifications

Brand

Applications

  • Fluid Handling, Instrumentation, Medical / Pharmaceutical, Food & Beverage, Manufacturing / Industrial, Packaging

Color

  • Black, Natural

Cuff I.D. (inch)

  • 1/4 - 4

Cuff I.D. (mm)

  • 3.18 - 101.6

Industry Standards

  • ASTM D3296 03, AMS3563E, SAE AS81914/1 6, VW1, UL 83, FDA Compliant, USP Class VI Compliant

Length (inch)

  • Bulk or inch Pieces - 12, 24, 36, 48, 60, 72, 84, 96, 120

Length (mm)

  • 305 - 3048

Maximum Working Temperature (°C)

  • 200° - 260° C

Maximum Working Temperature (°F)

  • 302° to 500° F

Media

  • Air, Chemicals, Water

Minimum Bend Radius (inch)

  • 0.365 - 9

Minimum Bend Radius (mm)

  • 9 - 229

Minimum Working Temperature (°C)

  • 75° C

Minimum Working Temperature (°F)

  • 100° F

Style

  • Convoluted

Tube I.D. (inch)

  • 3/16 - 4

Tube I.D. (mm)

  • 5 - 102

Tube O.D. (inch)

  • 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16, 1/2”, 5/8”, 3/4”, 7/8, 1, 1-1/8”, 1-1/4”, 1-1/2”, 1-3/4”, 2, 2-1/2”, 3, 4

Tube O.D. (mm)

  • 3, 5, 6, 8, 10, 11, 13, 16, 19, 22, 25, 29, 32, 38, 44, 51, 64, 76, 102

Tube Type

  • Mil-Spec, Standard, Heavy Wall, Low Profile

Tube Wall Thickness (inch)

  • 0.010 - 0.070

Tube Wall Thickness (mm)

  • 0.25 to 1.78

Tubing Material

  • PTFE, FEP, ETFE

  • Fluid transfer
  • Wire harness
  • Protection/cable core
  • Robotic arms
  • Lab equipment

Documentation

Catalogs

Document
