LD Series Electronic Meters

LD Series Electronic Meters

Brand: Graco, Inc
Add Product to My Catalog

LD Series Electronic Meters LD Series Electronic Meters

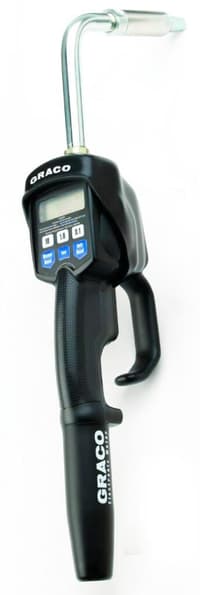

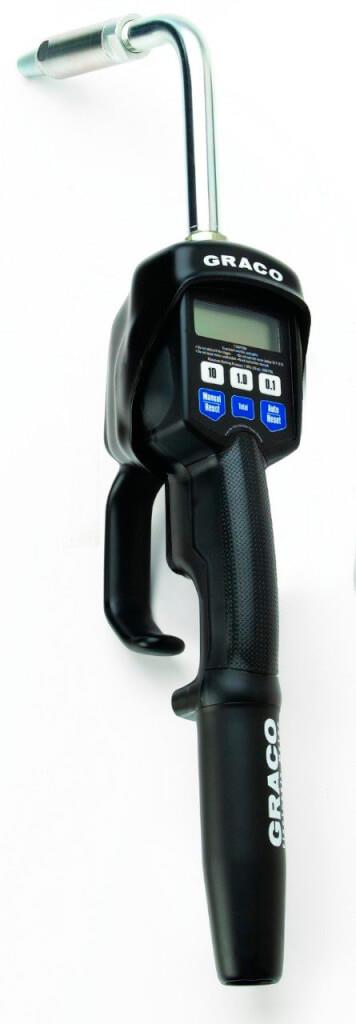

Graco's LD series meters are ideal for metered oil and dispense for lighter duty applications, including small maintenance shops, tire-muffler shops, fast-lubes, independent repair facilities and lower volume in-plant applications.
Features
  • Designed for indoor use, with standard flow rates of 5 gpm (18.9 lpm).
  • Preset meters with a number of optional accessories to choose from.
  • Easy to read LCD display with durable switches for long life.
  • Two-finger trigger; LDP5 models feature a latching trigger to reduce operator fatigue.
  • Rugged meter body for superior impact resistance and long life.
  • Ergonomically-designed handle for operator comfort.

Specifications

Brand

Battery (Battery Required to Meet Safety Approvals: Duracell MN1604 or Eveready EN22, 522)

  • 9 Volt Alkaline

Flow Range

  • 0.4 to 19 Lpm

Fluid Compatibility

  • Lubricating Oils, Antifreeze Mixtures

Height

  • 8.3 cm

Inlet

  • 1/2” NPT, 1/2” BSPP, 1/2” BSPT

Length

  • 28 cm

Maximum Preset Volume (LDP5 Meter Only)

  • 99.99 Units

Maximum Recorded Dispensed Volume

  • 999.99 Units

Maximum Totalizer Amount

  • 99,999 Units

Maximum Working Pressure

  • 69 bar

Operating Temperature Range

  • 0° to 49° C

Outlet

  • 3/8” NPT

Pressure Loss Accuracy

  • 1.2 bar @ 19 Lpm ± 0.5 % (At 9.5 Lpm, at 21° C, with 10 W Motor Oil & 3.8 L Dispensed. May Require Calibration, Out-of-box Accuracy is ± 1.25 %)

Storage Temperature Range

  • -34° to 49° C

Units of Measurement

  • Pints, Quarts, Gallons, Liters (Factory Set in Quarts)

Weight

  • 1.36 kg

Wetted Parts

  • Stainless Steel, Nitrile Rubber, Zinc, CS, LCP

Width

  • 8.3 cm
