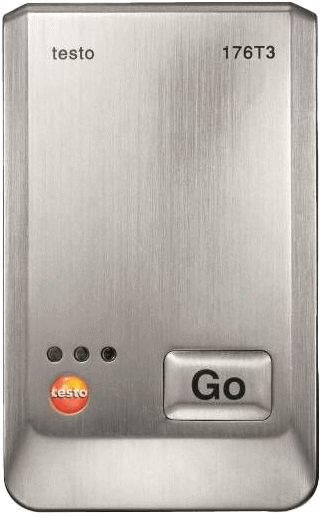

Testo 176T3 - Four-Channel Temperature Data Logger
Brand: TestoThe testo 176T3 temperature data logger with rugged metal housing makes it ideal for monitoring temperatures.
The 176T3 temperature measurement logger features external thermocouple parallel connections, which allow for simultaneous measurements using a wide variety of probes.
Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
The testo 176T3 temperature measurement logger is an ideal data logger for the monitoring of temperatures.
Features- Professional software with Excel export function for programming the logger and data analysis
- For measuring and logging the temperature at four different sites simultaneously
- Temperature measuring range from -200°C to +1000°C
- Industrial standard thanks to robust metal housing and protection class IP 65
- Automatic measuring data backup when the battery runs out or is changed
- Displays violations of limit values
- External thermocouple parallel connections compatible with a variety of different probes
- Data transfer possible using the USB port, or SD card (optional)
- Rugged metal housing makes it ideal for use in extremely cold or dusty environments
- IP54 protection class
- Capable of CFR 21 Part 11 Compliancy
- Free data logger software available for download
- Data is secured within the logger, and can be password protected using ComSoft
Specifications
Brand
Delivery Scope
- Testo 176T3 Temperature Data Logger with External Thermocouple Parallel Connections, Batteries, and Certificate of Conformity
Weight
- 15.17 oz. / 430 g
Dimensions
- 4 x 2 x 1 in. / 103 x 63 x 33 mm
Operating Temperature
- -4° F to 158° F / -20° C to +70° C
Housing
- Plastic
Protection Class
- IP65
Channels
- 4 External
Connectable Probes
- 4 x Thermocouple (Type T, K and J)
Product Colour
- Silver
Standards
- EU-guideline 2014/30/EU, 2011/65/EU
Measuring Rate
- 1 s to 24 h, 2 s to 24 h (Online Measurement)
Battery Type
- 1 x Lithium (TL-5903)
Battery Life
- 8 years (15 min. meas. rate, +25° C)
Interface
- mini USB, SD Card Slot
Memory
- 2,000,000 Measuring Values
Storage Temperature
- -40° F to 185° F / -40° C to +85° C
Measuring Range
- Type K TC: -328° F to 1832° F / -200° C to +1000° C
- Type T TC (Cu-CuNi): -328° F to 752° F / -200° C to +400° C
- Type J TC: -148° F to 1382° F / -100° C to +750° C
Accuracy - Type K TC
- ± 1 % of mv (-328° F to -148.2° F) ± 1 Digit / ± 1 % of mv (-200° C to -100.1° C) ± 1 Digit
- ± 0.5° F (-148° F to 158° F) ± 1 Digit / ± 0.3° C (-100° C to +70° C) ± 1 Digit
- ± 0.5 % of mv (158° F to 1832° F) ± 1 Digit / ± 0.5 % of mv (+70.1° C to +1000° C) ± 1 Digit
Accuracy - Type T TC (Cu-CuNi)
- ± 1 % of mv (-328° F to -148.2° F) ± 1 Digit / ± 1 % of mv (-200° C to -100.1° C) ± 1 Digit
- ± 0.5° F (-148° F to 158° F) ± 1 Digit / ± 0.3° C (-100° C to +70° C) ± 1 Digit
- ± 0.5 % of mv (158.2° F to 752° F) ± 1 Digit / ± 0.5 % of mv (+70.1° C to +400° C) ± 1 Digit
Accuracy - Type J TC
- ± 0.5° F (-148° F to 158° F) ± 1 Digit / ± 0.3° C (-100° C to +70° C) ± 1 Digit
- ± 0.5 % of mv (+158.2° F to 1382° F) ± 1 Digit / ± 0.5 % of mv (+70.1° C to +750° C) ± 1 Digit
- ± 0.5 % of mv (158.2° F to 1382° F) ± 1 Digit / ± 0.5 % of mv (+70.1° C to +750° C) ± 1 Digit
Resolution
- 0.1° F / 0.1° C
- Checking the Temperature in Super Freezers or Under Cryogenic Conditions
- Monitoring Process Temperatures
- Checking the Flow and Return Temperature of Heating Systems
