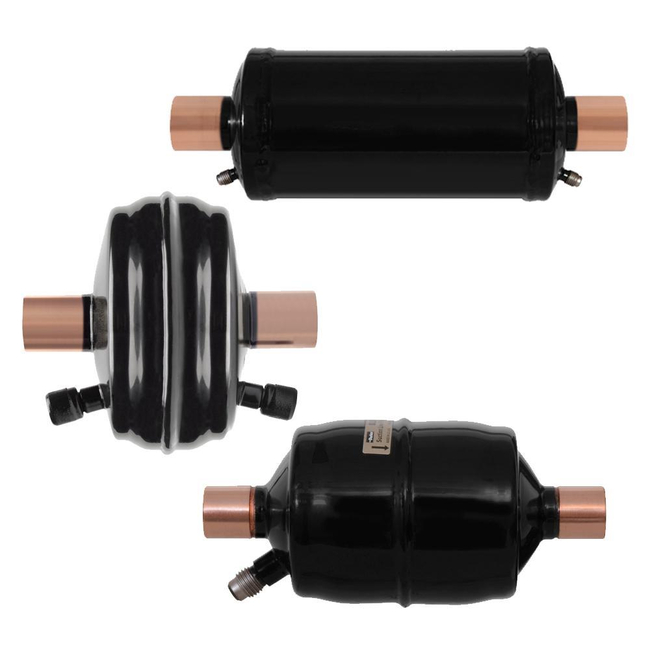

Liquid Line Sealed Model Filter Driers - Parker Gold Label SLD Series
Brand: Parker HannifinThe Parker Type SLD series suction line filter driers contain a solid core for use in suction line.
The compact design incorporates a large outside diameter shell, which results in a shorter lay in length, and a larger core, which provides a greater filtration area for maximum operating efficiency.
The core material has controlled porosity which effectively removes and holds a maximum amount of contaminants with minimal pressure drop.
In addition, the core material collects and holds acids and other harmful contaminants present after a motor burnout.
Features- Copper connections
- Molded porous core
- Low pressure drop - exceptionally high flow rates
- Access valves on both the inlet and outlet simplify pressure drop measurement
- Flare or ODF fittings
- Connections available from 3/8" to 1 5/8"
- Desiccant size from 8 to 54 cubic inch
- Capacity from 1 to 23 tons R-22
- UL Listed
Specifications
Brand
Connection Style
- ODF Solder
Diameter (inch)
- 3 or 4
Length (inch)
- 4.31” to 7.72”
Model Number
- Please Configure Part for Model Number
- Air Conditioning - Residential, Heat Pumps, Commercial
- Refrigeration - Cases, Freezers, Racks, Walk in units
- Transportation - Trucks, Vans
