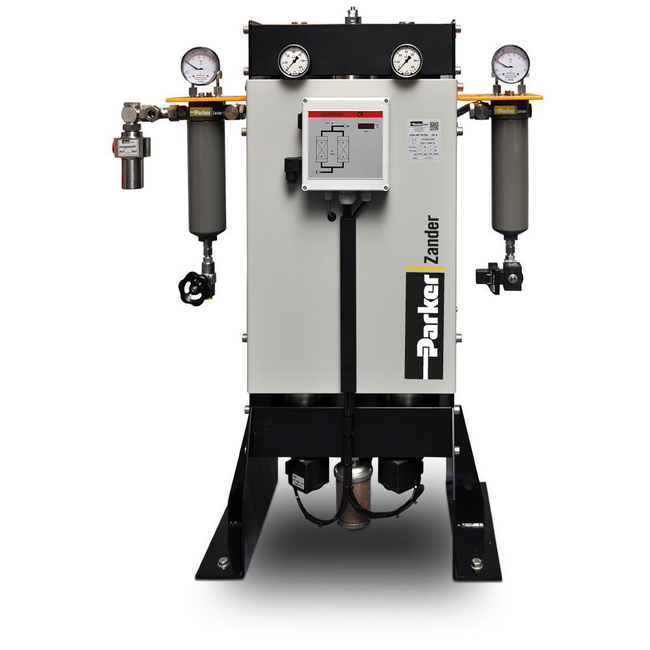

HDK-MT High Pressure Compressed Air Dryer (up to 100 barg)

Brand: Parker Hannifin

The patent protected HDK-MT concept is unique in its compact design.

HDK-MT combines a vibration resistant, torsion rigid dryer unit, made of high precision vessel pipes and valve blocks, with a pre-stressed filling of highly active desiccant beads.

HDK-MT dryers come mounted with GH series filters, incorporating tie-rod fixed filter elements, which provide almost no target for torsional forces and abrasion.

This provides a safe, reliable, and robust operation under pressure variations and constant vibration, typical for discontinuous operation in high pressure ranges.

The choice of corrosion resistant materials, like the hard coated aluminium valve blocks, seamless vessels and stainless steel fittings make HDK-MT series dryers ideally suited for harsh environments.

Compact and robust in design HDK-MT dryers are ideally suited for installations in tight spaces, like compressor skids, as well as installations on ships, platforms, and in containers.
Features
  • Dew-point control as standard
  • Compact, unique patent protected design of the pressure envelope
  • Pulsation and vibration resistant
  • Corrosion resistant
  • Small footprint
  • Simple servicing

Specifications

After-Filter Type

  • GH7/100ZP/VV or GH9/100ZP/VV

Approvals & Certifications

  • PED 97/23/EC Fluid Group II, TR

Connection Type

  • BSP-P DIN ISO 228

Controller Type

  • Multitronic with Dew Point Sensor

Depth (mm)

  • 370 or 450

Dryer Technology

  • High Pressure Adsorption

Electrical Requirements

  • 230 V, 50/60 Hz, Others on Request

Height (mm)

  • 1050 to 2075

IP Protection Rating

  • 65

Maximum Ambient Temperature (°C)

  • 50° C

Maximum Flow Rate (cfm)

  • 70.63 @ 1450 psig / PDP - 104° F to 382.58 @ 1450 psig / PDP - 104° F

Maximum Operating Pressure (barg)

  • 100

Maximum Operating Pressure (psig)

  • 1450

Maximum Operating Temperature (°C)

  • 55° C

Maximum Operating Temperature (°F)

  • 131° F

Minimum Ambient Temperature (°C)

  • 1° C

Minimum Operating Pressure (barg)

  • 50

Minimum Operating Pressure (psig)

  • 725.19

Minimum Operating Temperature (°C)

  • 1° C

Minimum Operating Temperature (°F)

  • 33.8° F

Port Size

  • 1/2” or 3/4”

Prefilter Type

  • GH7/100XP or GH9/100XP

Pressure Dew Point (°C)

  • -25° to -40° C

Pressure Dew Point (°F)

  • -13° to -104° F

Weight (kg)

  • 160 to 280

Width (mm)

  • 700 or 770
