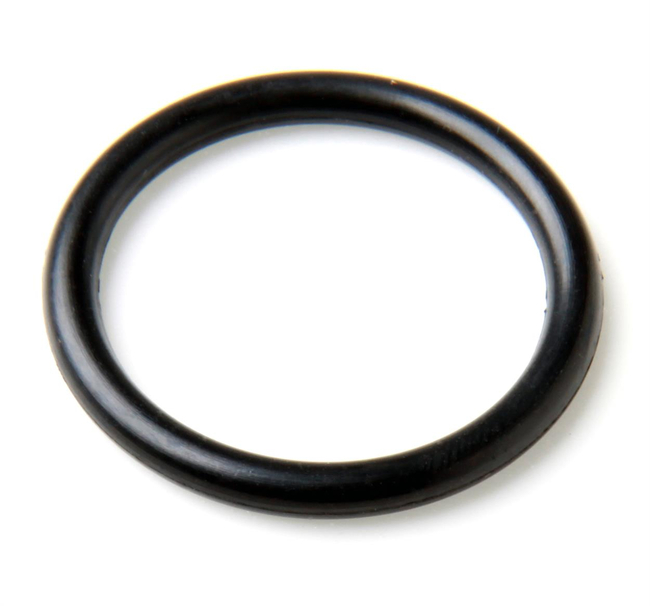

Fluorocarbon 75 Durometer O-Ring, Low Compression (VM100-75)

Fluorocarbon 75 Durometer O-Ring, Low Compression (VM100-75)

Brand: Parker Hannifin
Add Product to My Catalog

Parker's Fluorocarbon 75 Durometer O-Ring, Low Compression (VM100-75 GP) has excellent compression set resistance coupled with the wide chemical resistance expected for a viton type of material.

Used across a range of markets including General Industrial, Automotive, and Aerospace,VM100-75 carries a range of certifications which demonstrate its superiority as a 75 durometer fluorocarbon
Features
  • Mineral oil and grease, ASTM oil No. 1, and IRM 902 and IRM 903 oils
  • Non-flammable hydraulic fluids (HFD)
  • Aerospace fuel systems and engine oil systems
  • Mineral and vegetable oil and grease• Aliphatic hydrocarbons (butane, propane, natural gas)• Aromatic hydrocarbons (benzene, toluene)
  • Chlorinated hydrocarbons (trichloroethylene and carbon tetrachloride)
  • Gasoline (including high alcohol content)
  • High vacuum
  • Very good ozone, weather and aging resistance

Specifications

Brand

Approvals & Certifications

  • MIL/Aero

Color

  • Black

Fluid Compatibility

  • Broad Range

Internally Lubed

  • No

Markets

  • Aerospace

Maximum Working Temperature (°F)

  • 400° F

Meets Certifications

  • UL-Gas, UL-ApKer, UL-NatGas, UL-FuelOil, UL-HtdFuelOil, UL-LPGas, AMS7276, AMS-R-83248 Typical 1 Class 1, UL-Gas, UL-ApKer, UL-NatGas, UL-FuelOil, UL-HtdFuelOil, UL-LPGas, AMS-R 25988 Typical 1 Class 1, MIL-DTL-25988 Typical1, Class 1, Grade 70/1

Minimum Working Temperature (°F)

  • -15° F

Nominal Hardness

  • 75

Nominal Hardness Range

  • > 70

Polymer Family

  • Fluorocarbon (FKM, FPM)

Region of Origin

  • North America

Thermal Application (°F)

  • High Temperature (260° to 400° F)
